▋Product Specifications
| Model No | SP6 L2 | CPU TDP | 400W |
| CPU Socket type | SP6 Socket (LGA4844 Socket) | Life | 50000h |
| Server Form Factor | 1U Server | Product name | Sp6 Liquid Cold Plate |
| Liquid Cooler dimensions | 118mm*92.4mm*25mm | Liquid Cooling | 1U liquid cooling |
| RoHS | Compliance | liquid cooler material | Copper base + Copper fin |
| Fin Thickness | 0.15 mm | Cooling Type | Liquid cooling |
| Fin pitch | 0.15 mm | CPU Support | AMD EPYC 8004 Series (AMD EPYC™ 8434P or more) |
▋Product Description

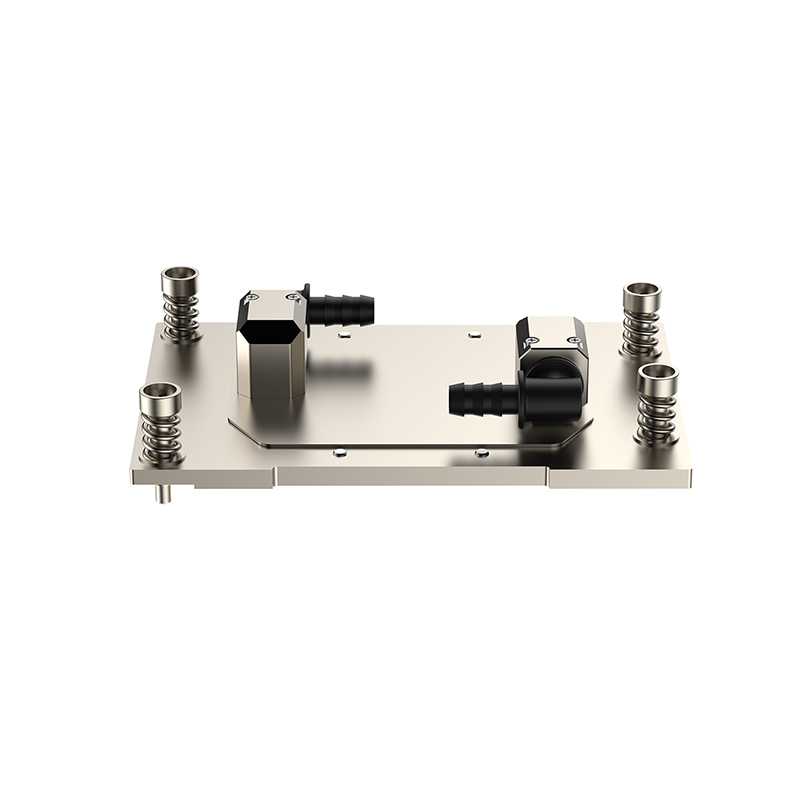

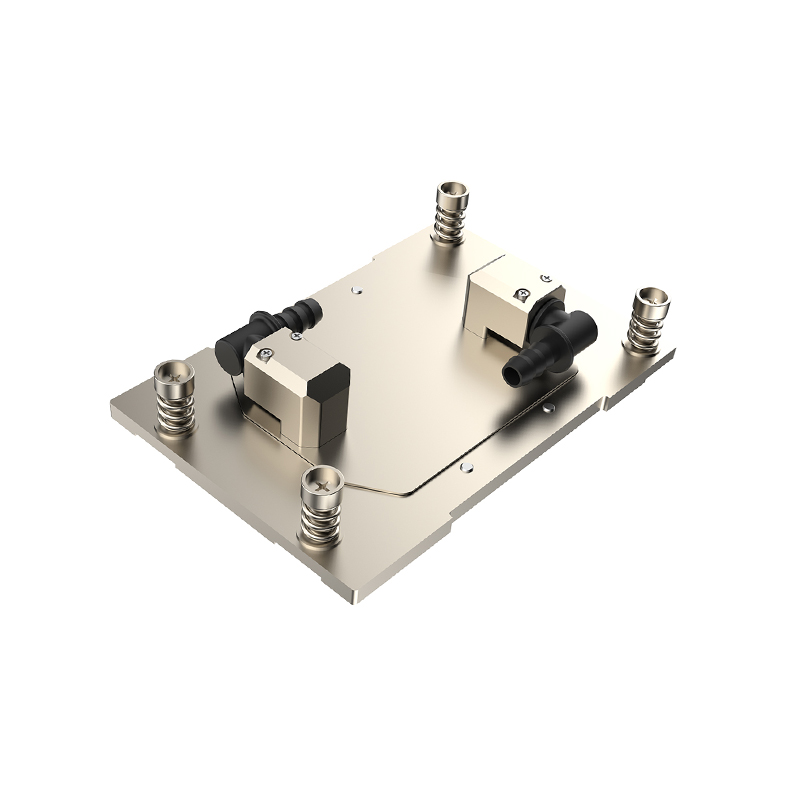

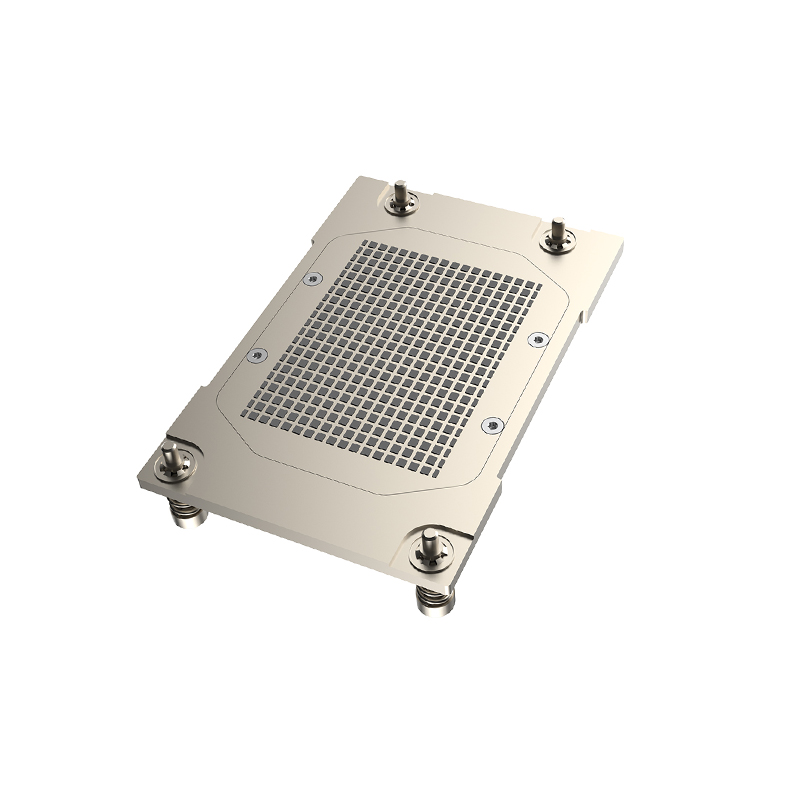

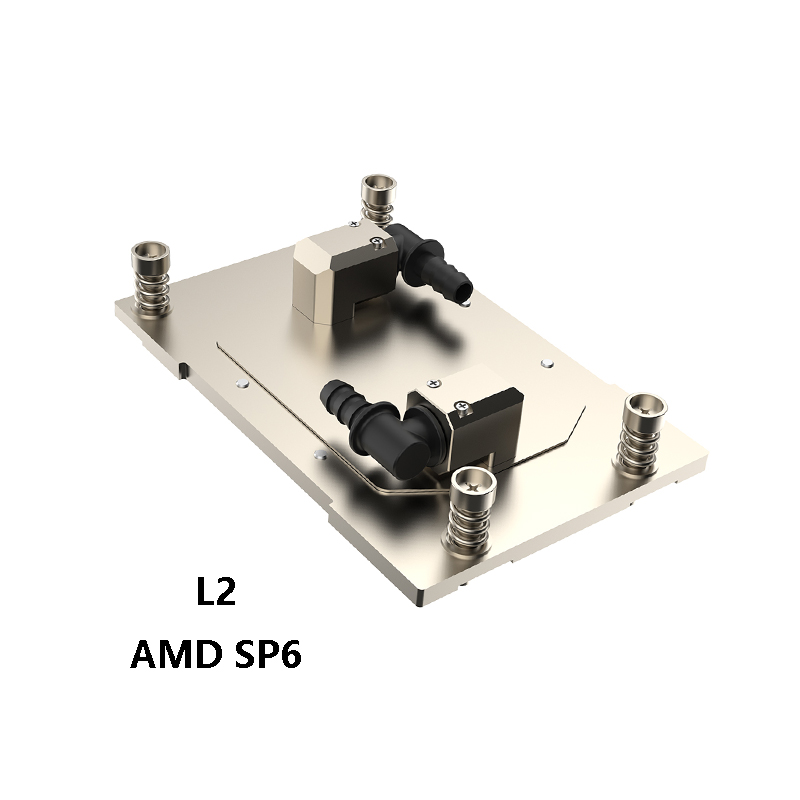

Lori AMD SP6 socket liquid cooling plate is specifically designed for the EPYC 8004 series processors. The liquid cold plate is manufactured using an advanced vacuum brazing process, which fuses the copper base and the copper micro-fin plates into a single unit, thereby maximizing the heat transfer efficiency. The micro-channel flow channel design creates a larger heat dissipation area within a compact space, enabling efficient transfer of heat to the liquid cooling system.This liquid cooling component is designed to handle high-intensity workloads with unparalleled efficiency, ensuring that your server infrastructure operates at a lower temperature, with less noise, and with greater reliability.
