2500 ml/min flow rate
2.2 meter head
▋Product Specifications
Model | LR-GLC-02 | Water pump power consumption | 4.0W (MAX 5.4W) |
Water cooling plate size | 218 *93* 14mm | Flow rate | 2500ml/min |
Water cooling radiator size | 396*120.5*38mm (black) | Head | 2.2 M |
Rated voltage | DC 12V | Operating temperature | -20℃~+60℃ |
Starting voltage | ≥ 6V (Power ON/OFF) | Storage temperature | -20℃~+70℃ |
Water pump speed | 3400 ± 10% RPM | Noise | 2800RPM 30dBA |
| Water pump rated current | 0.38A (MAX 0.45A) | Weigh | ≈ 4237g (cooling liquid ≈ 260g) |
| Bearings | Ceramic bearing | Expected lifespan | 30,000 hours, 40℃ |
| Lead wires | Water pump wires: 2510-3P black housing, UL1007 26# black zebra black parallel wire, total length 380mm | Terminal | 2510-4P black terminal |
▋Product Description


2500 ml/min flow rate
2.2 meter head

30 dBA @ 2800 RPM
Ceramic bearings, with a lifespan of 30,000 hours.

396×120.5×38mm black water cooling radiator
Equipped with copper base water cooling plate

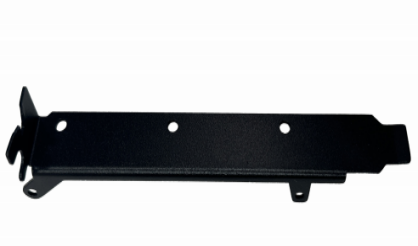

Nickel-plated low-carbon steel guard strip
Passed the 8-hour salt spray test
▋Product Details

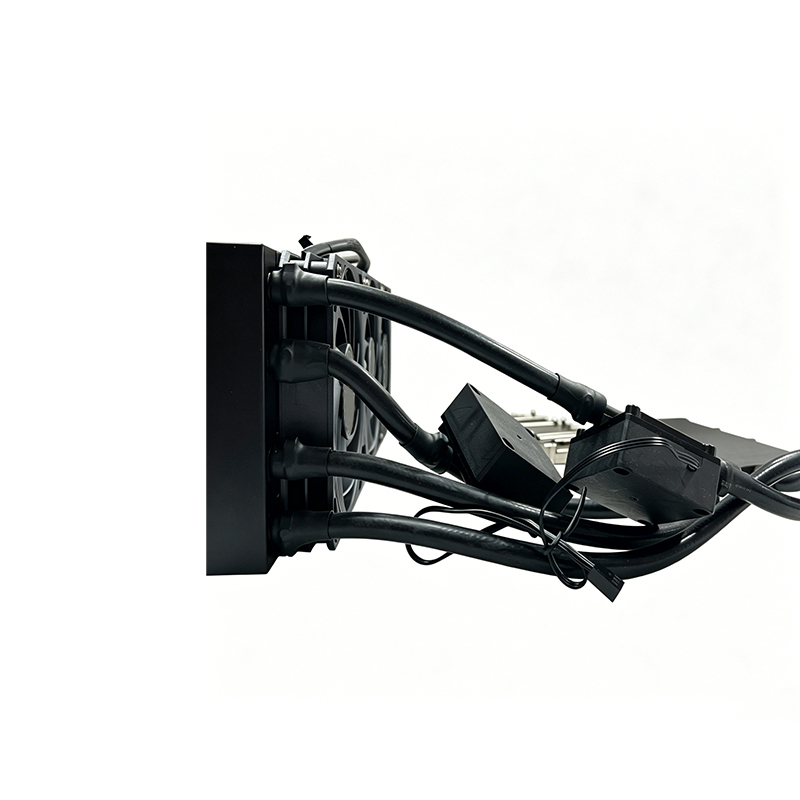

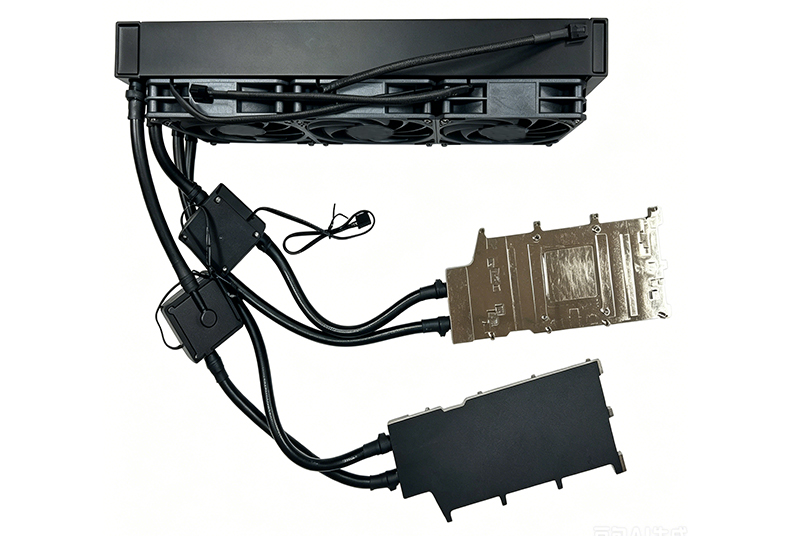

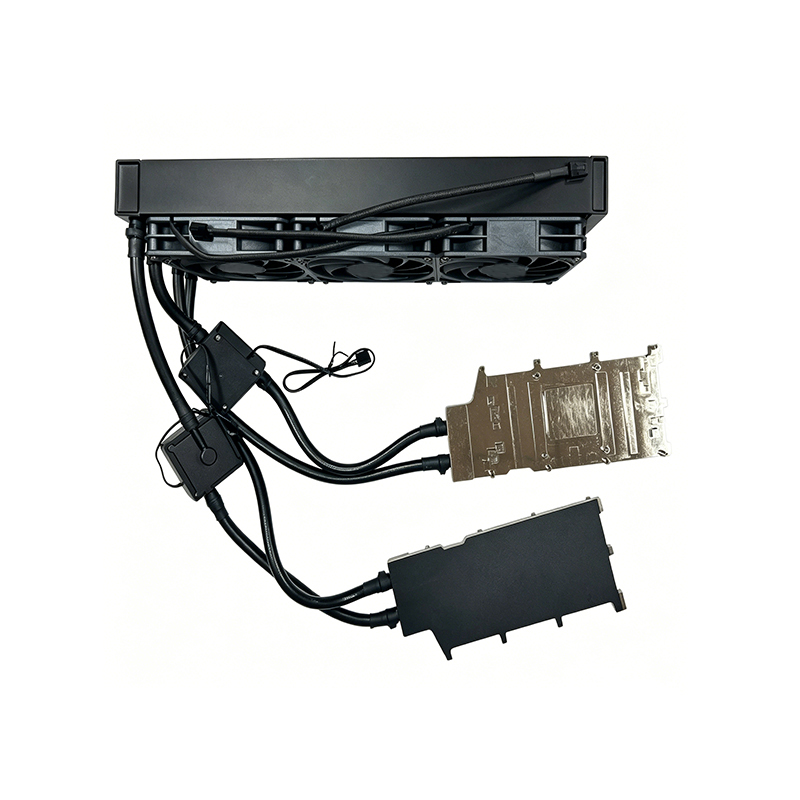

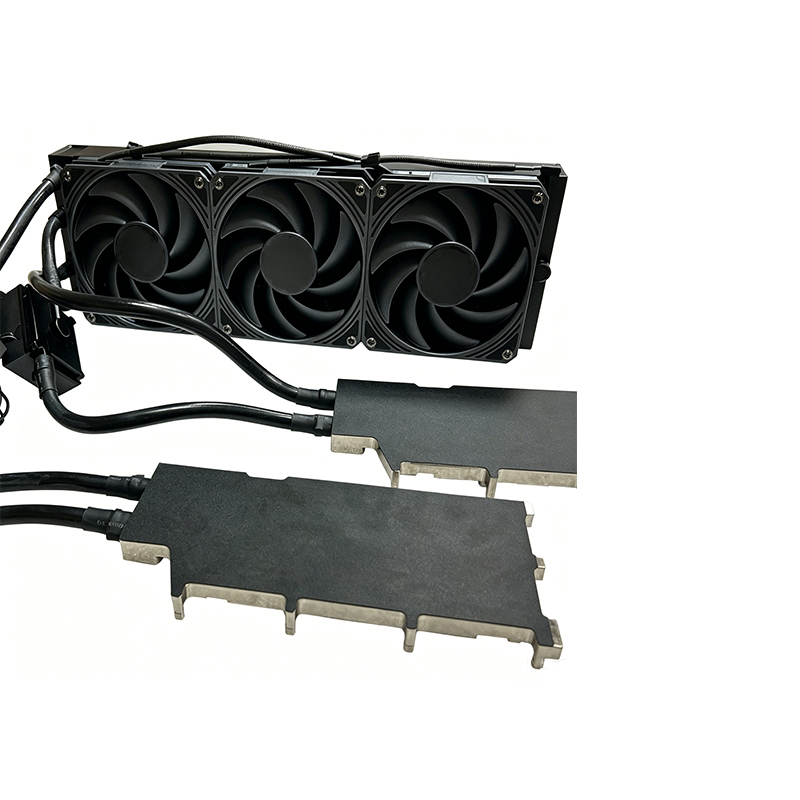

Dual GPU Cold Plates, One Loop
Unique 1-to-2 parallel channel design, efficiently cooling two A100 GPUs. Saves space, simplifies installation, and reduces overall system cost compared to two separate AIO coolers.

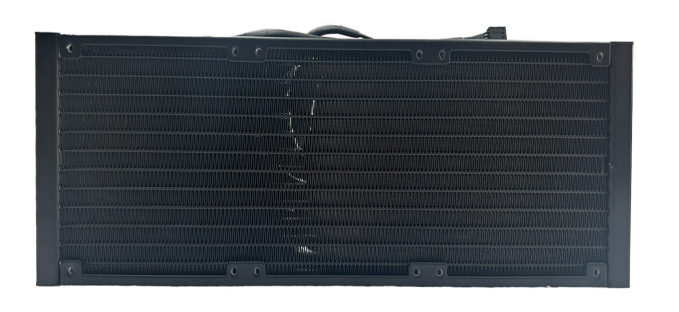

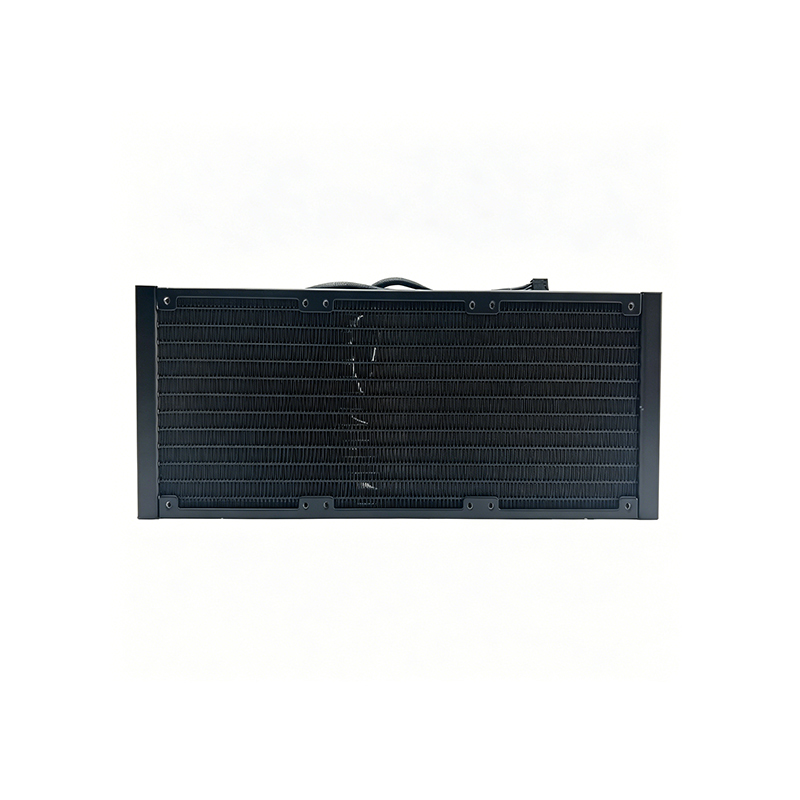

Massive 360mm Radiator
396mm x 120.5mm x 38mm high-density fin array provides exceptional heat dissipation. Compatible with three 120mm PWM fans (fans optional – customize per your noise/performance needs).

▋Why choose Lori?
Over 15 years of experience in heat dissipation manufacturing: Specializing in OEM/ODM of air cooling and liquid cooling heat sinks, providing services to customers worldwide with heat dissipation needs such as CPUs, graphics cards, workstations, etc.
Strict quality control: Every water cooling kit undergoes size inspection (tolerance ±1mm), full appearance inspection (no burrs/indentations/deformation), and pump performance testing.
Fast delivery: The Dongguan factory has standard inventory, supporting small batch and large order orders, and also accepting customized production.
Environmental compliance: All materials comply with RoHS requirements, and the nickel plating process has passed salt spray certification.
