2500 ml/min flow rate
2.2 meter head
▋Product Specifications
Model | LR-GLC-01 | Water pump power consumption | 4.0W (MAX 5.4W) |

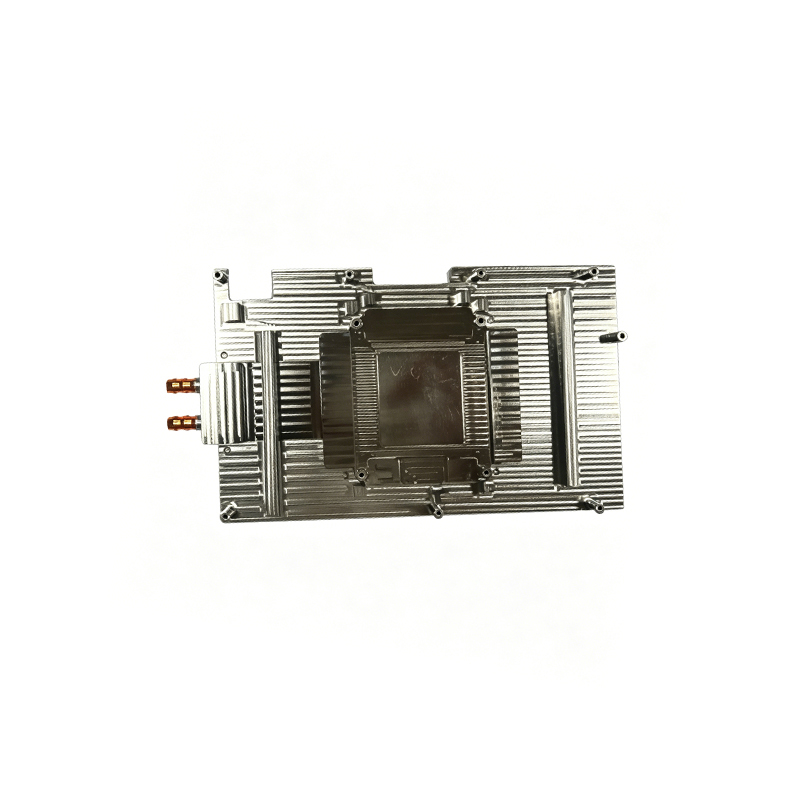

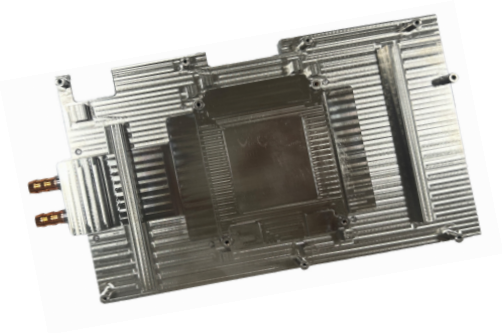

Water cooling plate size | 215.5*127*15mm | Flow rate | 2500ml/min |

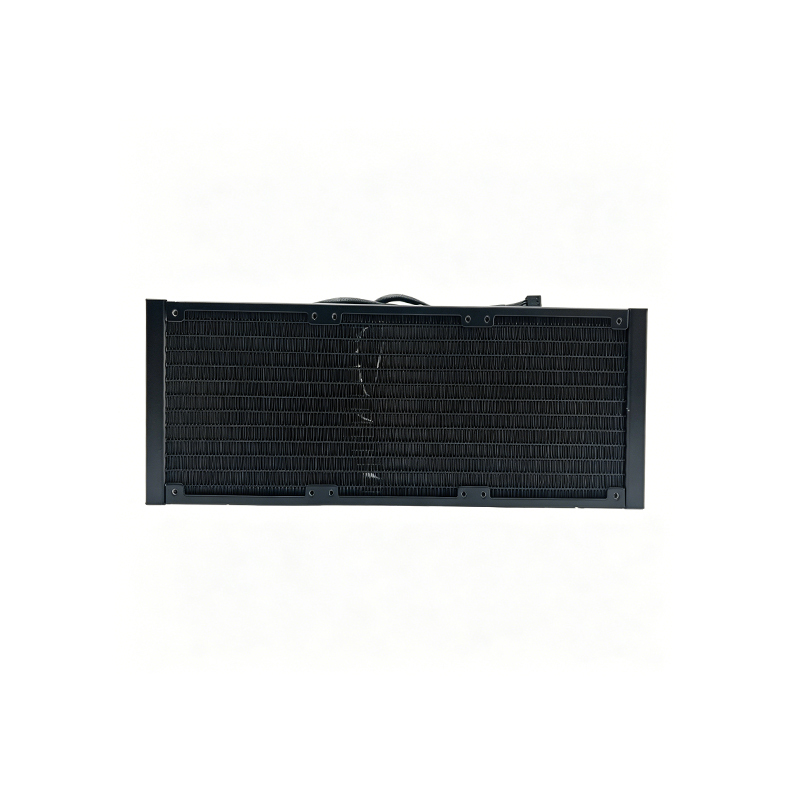

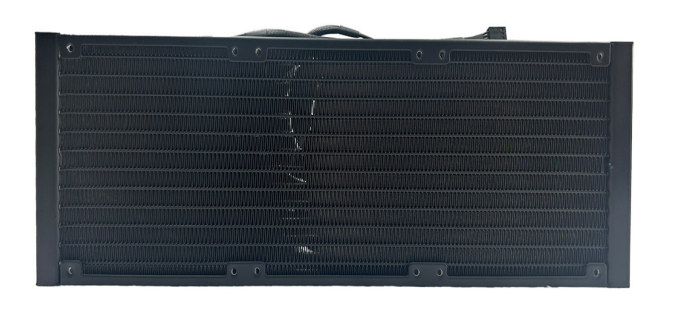

Water cooling radiator size | 396*120.5*38mm (black) | Head | 2.2 M |
Rated voltage | DC 12V | Operating temperature | -20℃~+60℃ |
Starting voltage | ≥ 6V (Power ON/OFF) | Storage temperature | -20℃~+70℃ |
Water pump speed | 3400 ± 10% RPM | Noise | 2800RPM 30dBA |
| Water pump rated current | 0.38A (MAX 0.45A) | Weigh | ≈ 2304g (cooling liquid ≈ 260g) |
| Bearings | Ceramic bearing | Expected lifespan | 30,000 hours, 40℃ |
| Lead wires | Water pump wires: 2510-3P black housing, UL1007 26# black zebra black parallel wire, total length 380mm | Terminal | 2510-4P black terminal |
▋Product Description


2500 ml/min flow rate
2.2 meter head

30 dBA @ 2800 RPM
Ceramic bearings, with a lifespan of 30,000 hours.

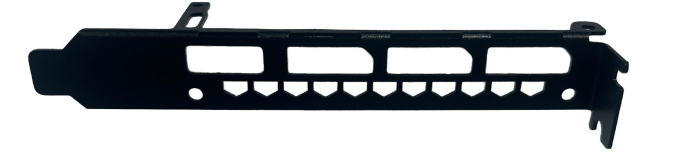

Nickel-plated low-carbon steel guard strip
Passed the 8-hour salt spray test
▋Product Details



▋Why choose Lori?
Over 15 years of experience in heat dissipation manufacturing: Specializing in OEM/ODM of air cooling and liquid cooling heat sinks, providing services to customers worldwide with heat dissipation needs such as CPUs, graphics cards, workstations, etc.
Strict quality control: Every water cooling kit undergoes size inspection (tolerance ±1mm), full appearance inspection (no burrs/indentations/deformation), and pump performance testing.
Fast delivery: The Dongguan factory has standard inventory, supporting small batch and large order orders, and also accepting customized production.
Environmental compliance: All materials comply with RoHS requirements, and the nickel plating process has passed salt spray certification.
