▋Product Specifications
| Model No | LGA1851-A43 | CPU TDP | 150 W |
| CPU Socket Type | LGA 1851 socket | Server Form Factor | 2U Server |
| CPU Cooler Dimensions | 90 x 90 x 67 mm | Voltage Rating | 12V DC |
| Fan Speed | PWM 2600-8000RPM | Bearing Type | 2 Ball Bearing |
| Fan Airflow | 47.2CFM (MAX) | Fan Connector | 4pin PWM |
| Max Noise Level | 52.5 dBA (MAX) | Cooler Materials | Aluminum fins + 4 heat pipes |
| Cooling Type | Active | Process | Stamping, soldering , CNC maching |
▋Product Description
Intel Lga 1831 Square Passive Cpu 2U Server Vapor Chamber Heat Sink

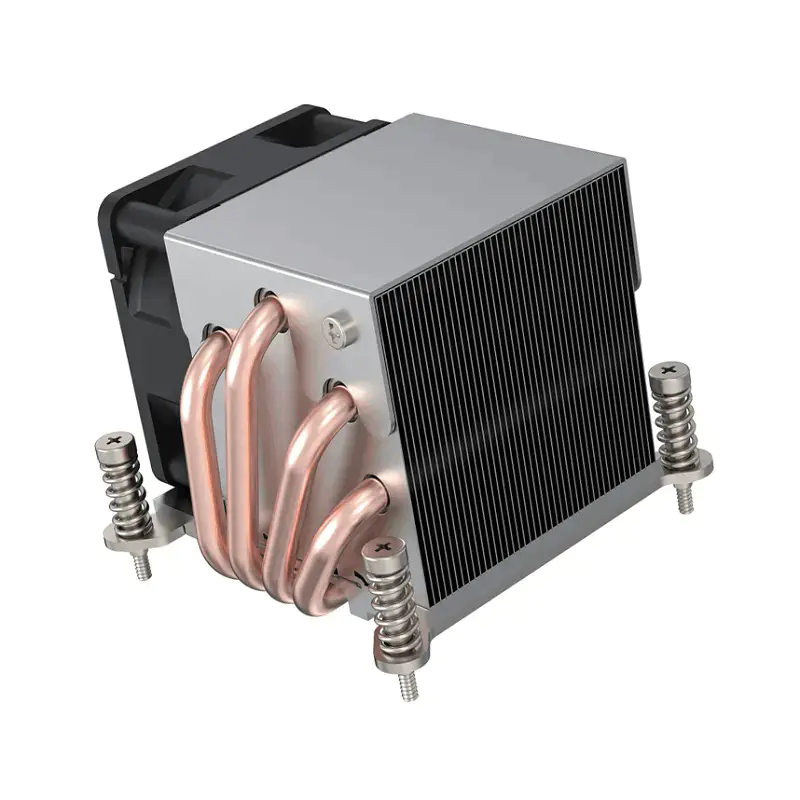

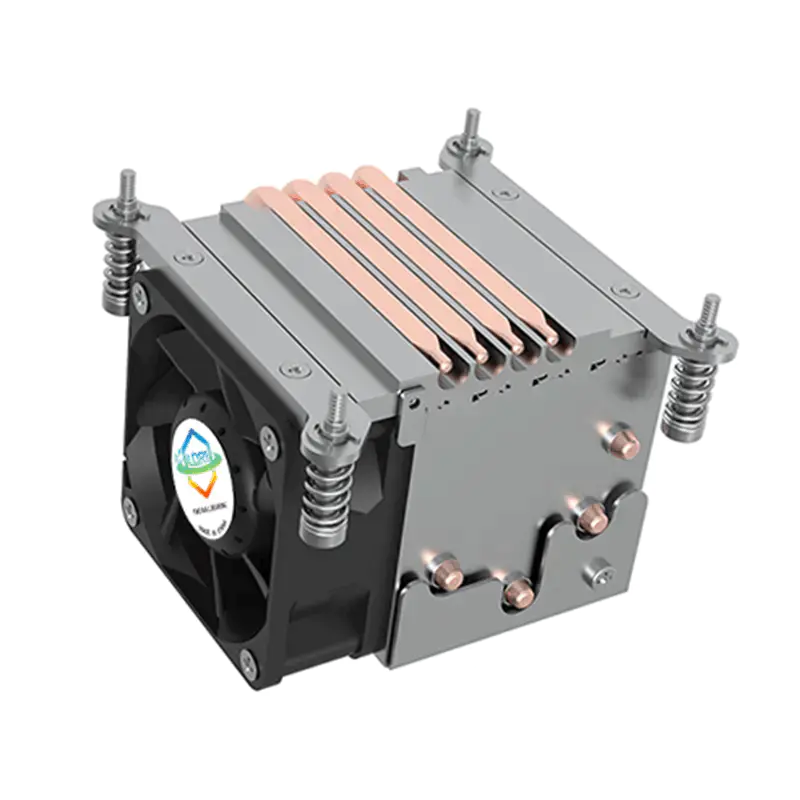

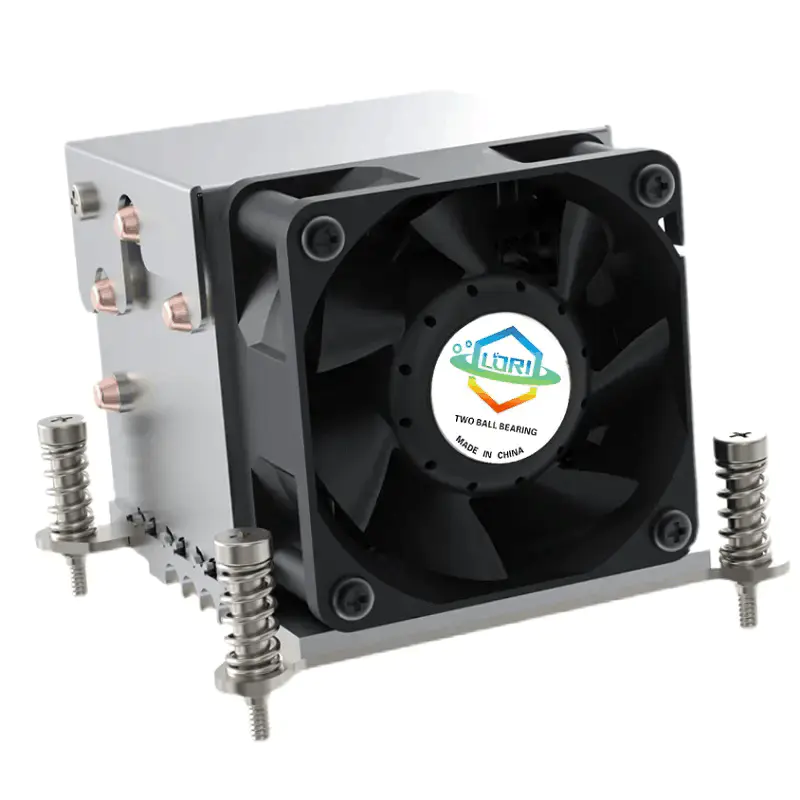

This Intel 2U Active Cpu Air heat sink is designed for Intel Server Processor, socket LGA 1851, aluminum fins with 4 heat pipes embedded and soldered on the copper base up to TDP 150W for 2U server solution. The Lori Intel Lga 1851 2u Active Cpu heat sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
