▋Product Specifications
| Model No | LGA1700-A43 | CPU TDP | 150 W |
| CPU Socket Type | LGA1700 socket | Server Form Factor | 2U Server |
| CPU Cooler Dimensions | 90 x 90 x 67 mm | Voltage Rating | 12V DC |
| Fan Speed | PWM 2600-8000RPM | Bearing Type | 2 Ball Bearing |
| Fan Airflow | 47.2CFM (MAX) | Fan Connector | 4pin PWM |
| Max Noise Level | 52.5 dBA (MAX) | Cooler Materials | Aluminum fins + 4 heat pipes |
| Cooling Type | Active | Process | Stamping, soldering , CNC maching |
▋Product Description

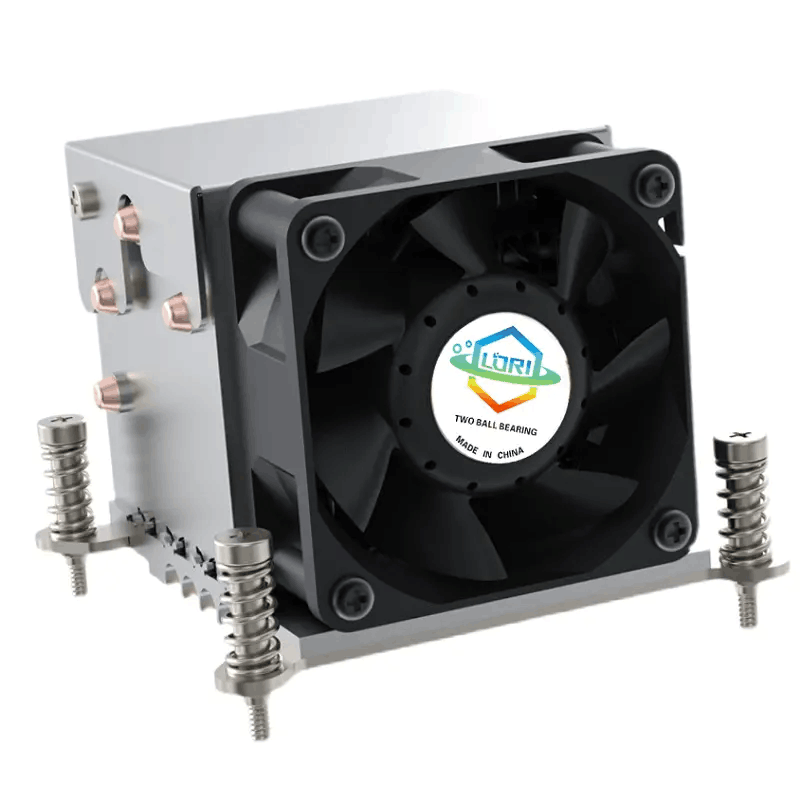

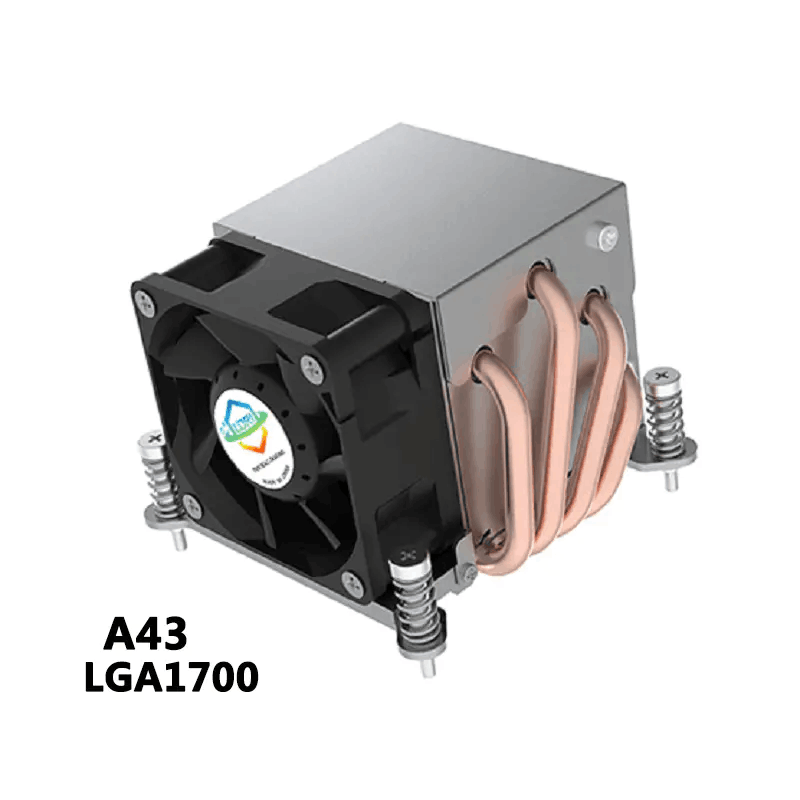

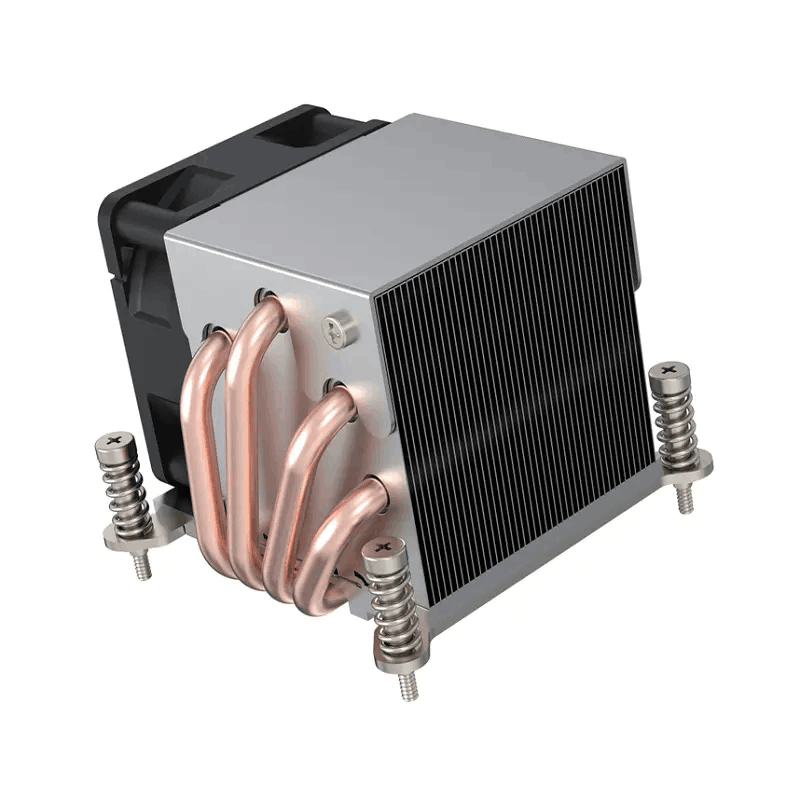

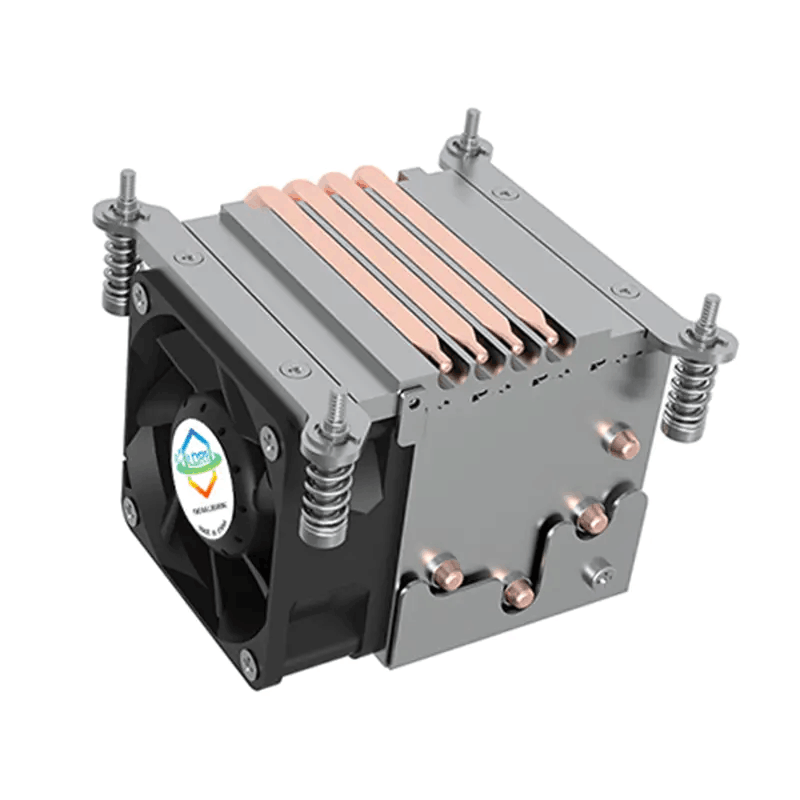

12th Intel Core i7 Lga1700 Square Cpu Vapor Chamber Heat Sink For 2U Server TDP 150W
This Intel Core i7 2U Active Cpu Air Heat Sink is designed for Intel Server Processor, socket LGA 1700, aluminum fins with 4 heat pipes embedded and soldered on the copper base up to TDP 500W for 2U server solution. The Lori Intel Lga 1700 2u Active Cpu Heat Sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
