▋Product Specifications
| Model No | BGA 2518-A16 | CPU TDP | 120W |
| CPU Socket type | BGA 2518 Socket | Voltage Rating | 12V DC |
| Server Form Factor | 1U Server | Heatsink material | Aluminium fins + Aluminium base+3 heat pipes |
| CPU Cooler dimensions | 120mm*84mm*28.5mm | Cooling Type | Passive |
| CPU Hole Pitch | 69.2mm**46mm | Process | Stamping, Soldering, CNC machining |
| Fin Thickness | 0.3mm | Fin Pitch | 1.7mm |
| CPU Support | Intel Xeon D Processor (Intel Xeon D-2187NT Processor or more) | ||
▋Product Description

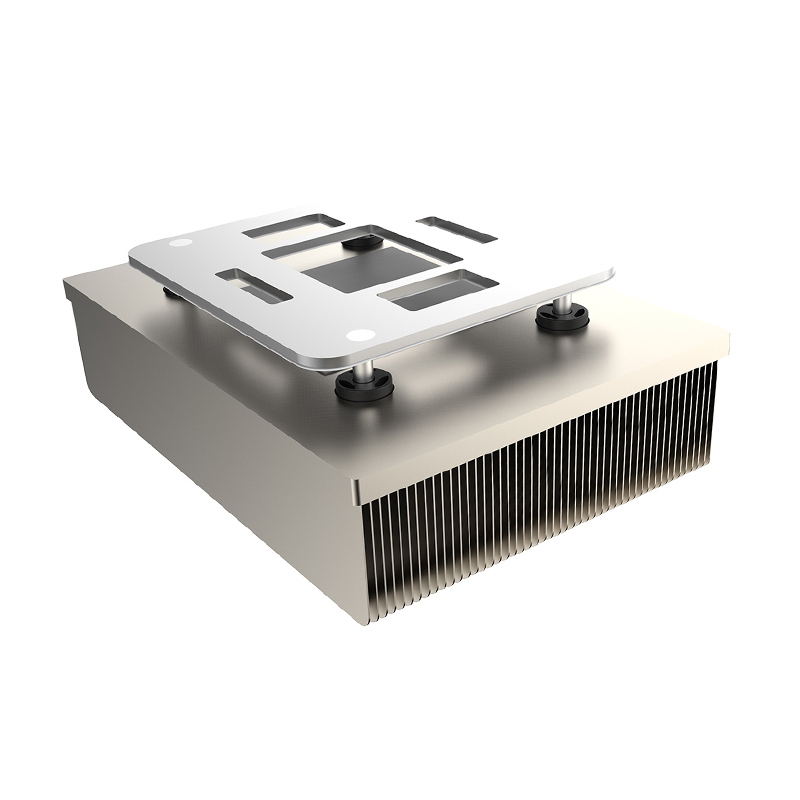

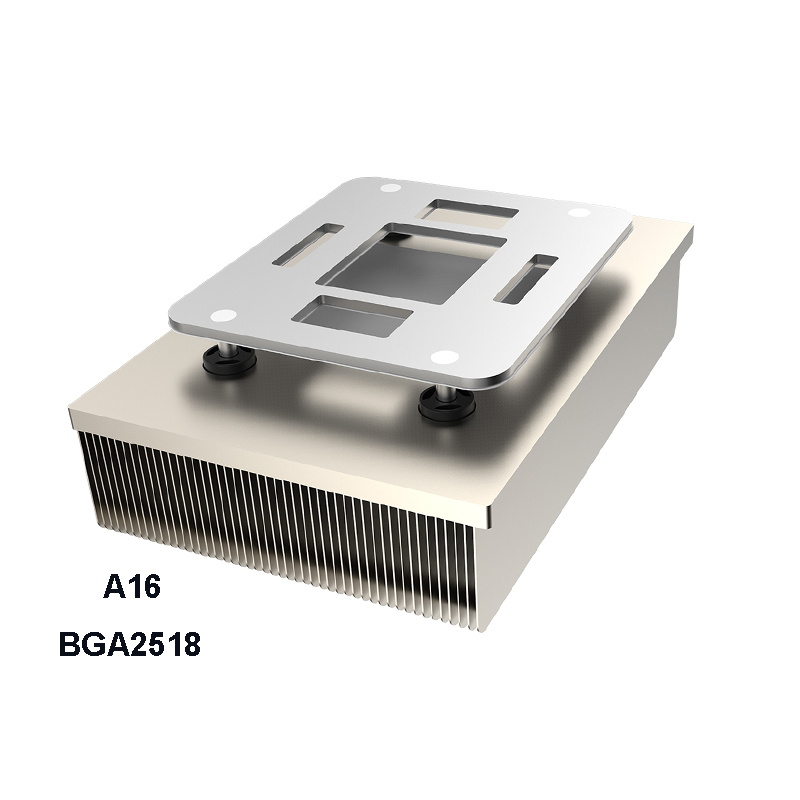

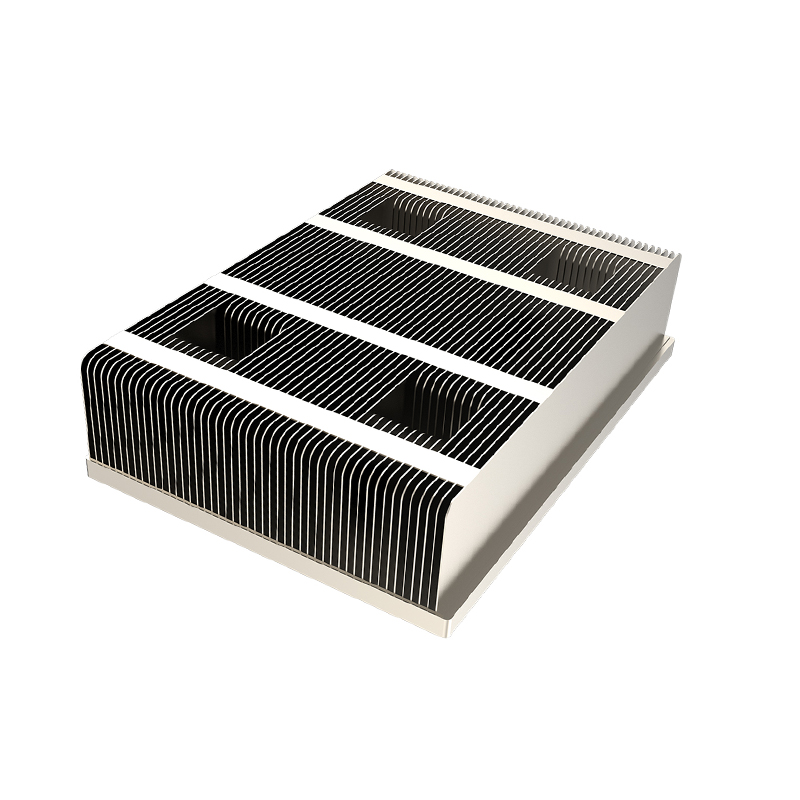

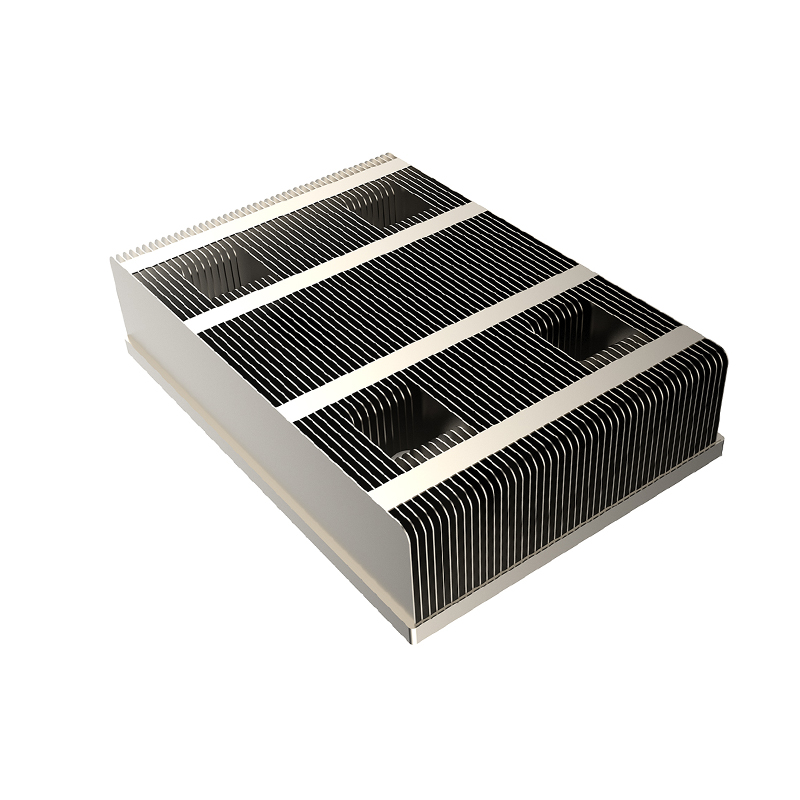

Intel Xeon D Processor 1U Server BGA 2518 Socket CPU Cooler Heat Sink
Lori Intel BGA 2518-A16 CPU cooler is a Intel BGA 2518 socket passive cooler designed for Intel Xeon D Processor (Intel Xeon D-2187NT Processor or more), and is made of electroless nickel plated aluminum fins with 3 heat pipes embedded and soldered on the aluminum base up to TDP 120W for 1U server solution, which makes this CPU cooler achieve the best performance at a lower cost, with a higher cost performance. The Intel BGA 2518-A16 CPU Cooler has been fully tested and validated by Lori to ensure the best quality and cooling performance.
