Intel Xeon Processors Socket Lga3647 1u Server Passive Heatsink

这里可以自定义设置

Intel Xeon Processors Socket Lga3647 1u Server Passive Heatsink

B站不支持收货地址

B站不支持库存规格

Model No:: LGA3647-1U-A17

CPU Support:: Intel Xeon Processor Cpu

CPU Socket:: Intel LGA 3647 Socket

Application:: 1U Server

Payment:: T/T ,L/C /Paypal

Delivery time :: 3-15days after the deposit received

Departure port:: SHENZHEN

OEM/ODM:: Available

Certification:: RoHS and REACH compliant

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Production Information

▋Product Specifications

Model No	LGA3647-1U-A17	Fin pitch	1.6mm
CPU Socket type	LGA3647 Socket	CPU TDP	180W
Server Form Factor	1U Server	Voltage Rating	12V DC
CPU Cooler dimensions	108mm78mm25.5mm	Heatsink material	Aluminium fins+copper base + 4 heat pipes
Fin Thickness	0.3mm	Cooling Type	Passive
CPU Support	Intel Xeon Processors(Intel® Xeon® W-3235 Processor and more）	Process	Stamping, Soldering, CNC machining

▋Product Description

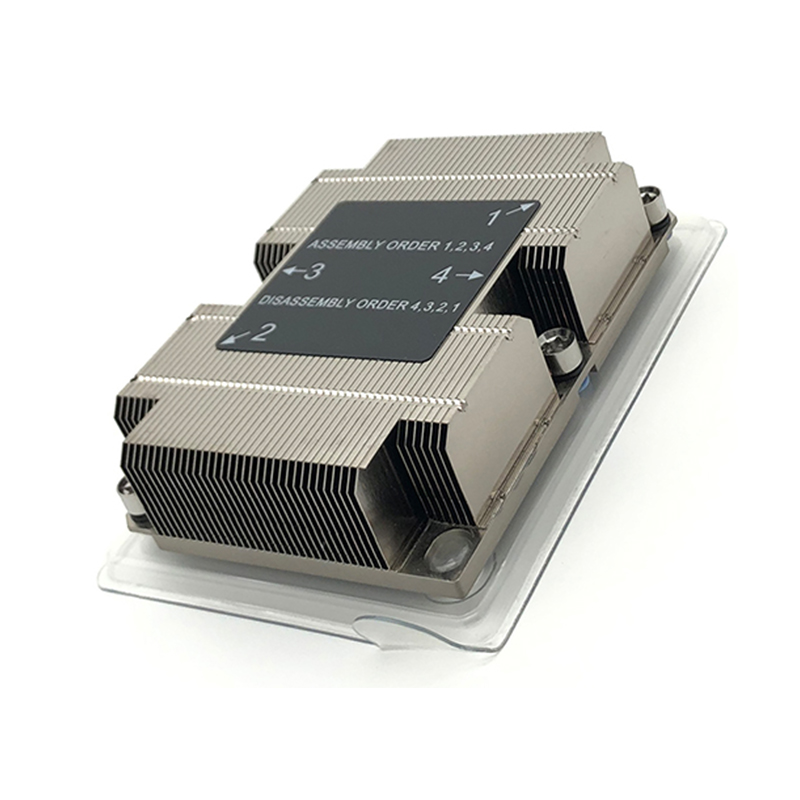

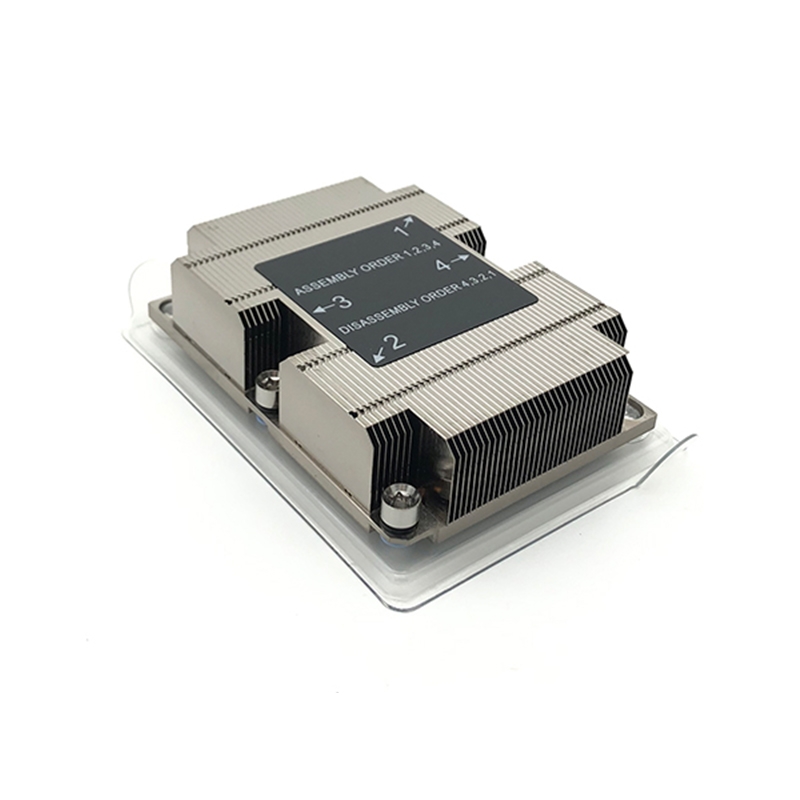

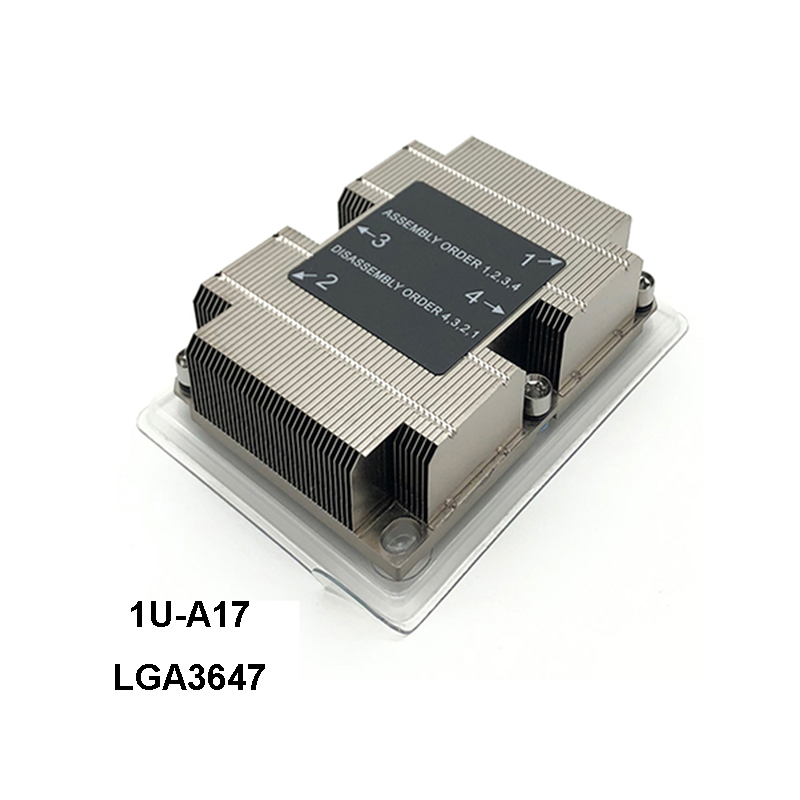

Intel Xeon Processors Socket Lga3647 1u Server Passive Heatsink

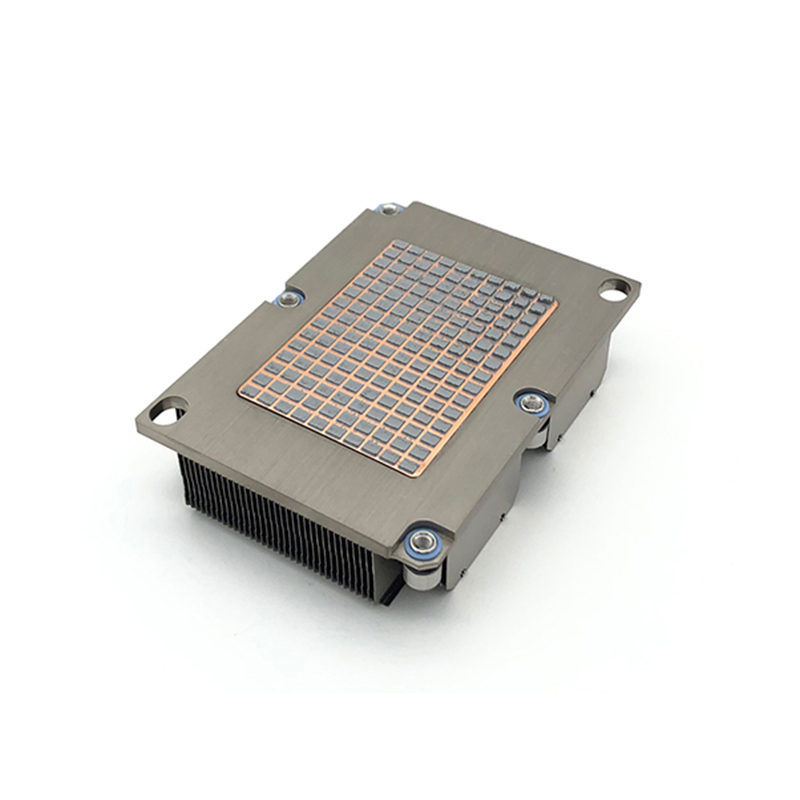

This best passive heatsink is designed for Intel xeon scalable process, socket LGA 3647 , The Lga3647 heatsink is aluminum stacked fin soldered on the copper base with 4 heat pipes for 1U server solution. Support 180 Watts CPU Power Heat Dissipation, The lga3647 heatsink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
