▋Product Specifications
| Model No | LGA4677-D96 | CPU TDP | 320W |
| CPU Socket Type | LGA4677 square socket | Server Form Factor | 4U Server and Workstation |
| CPU Cooler Dimensions | 119.2 x 92.5 x 125.5 mm | Voltage Rating | 12V DC |
| Fan Speed | PWM 1300-3800RPM | Bearing Type | 2 Ball Bearing |
| Fan Airflow | 42.64CFM (MAX) | Fan Connector | 4 pin PWM |
| Max Noise Level | 36.74dBA (MAX) | Cooler Materials | Aluminum fins+ Copper base + 6 heat pipes |
| Cooling Type | Active | Process | Stamping, soldering , CNC maching |
| Cooling Type | 5th Intel Xeon |
▋Product Description

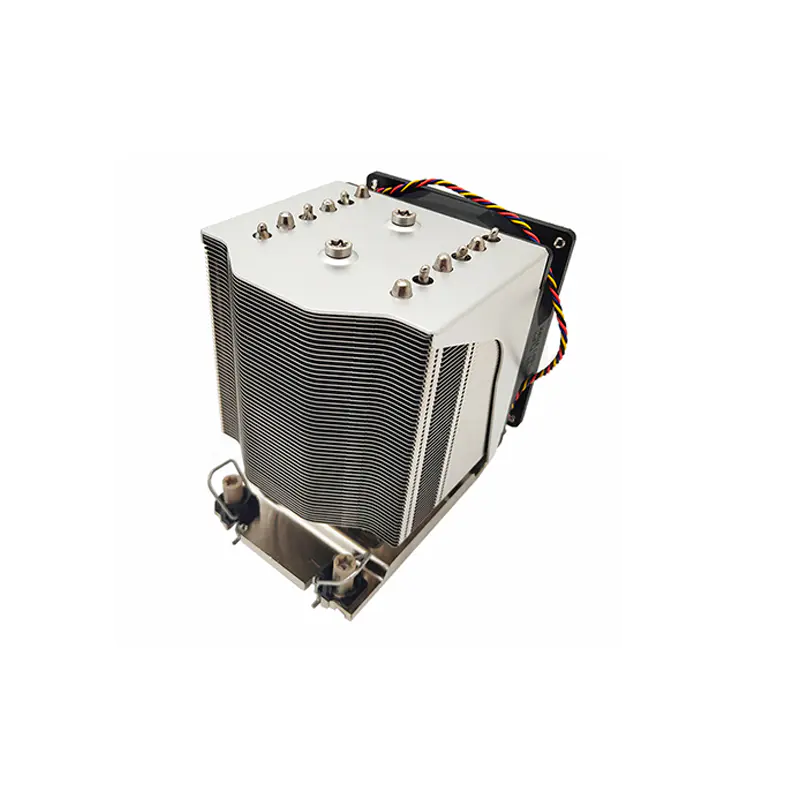

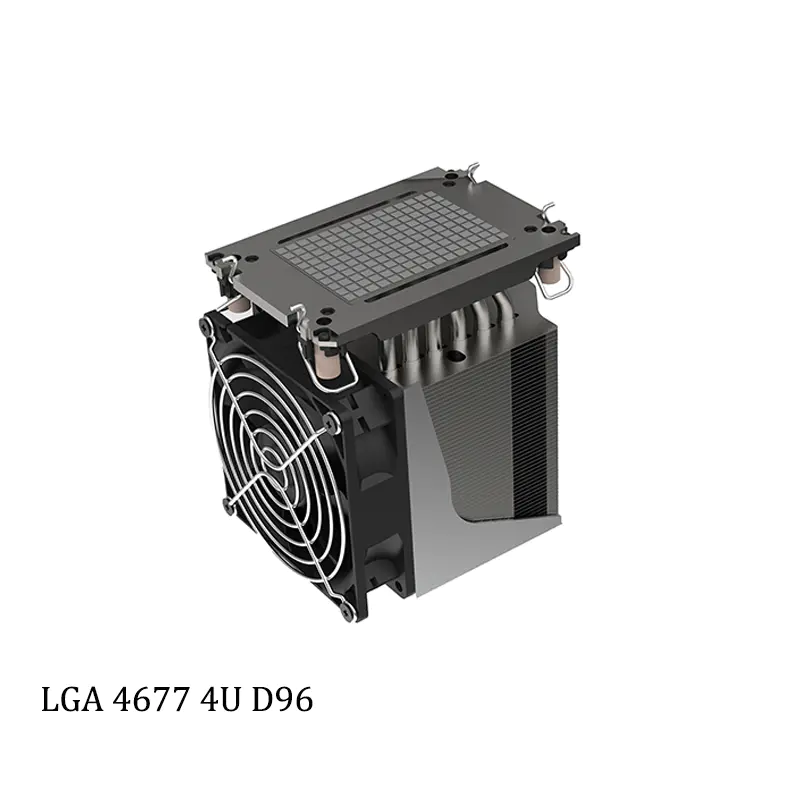

LGA 4677 CPU Heat Sink TDP 320W For 5th Intel Xeon 4U Server Tower Workstation
This 4U Active LGA 4677 CPU heat sink For 4U Tower Workstation is designed for Intel 5th Intel Xeon CPU Server Processor, socket LGA 4677, aluminum fins with 6 heat pipes embedded and soldered on the copper base up to TDP 320W for 4U tower workstations solution. The Lori Intel Lga 4677 4u Active Cpu cpu heat sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
