▋Product Specifications
Model No | LGA7529-4U-D95 | CPU TDP | 500W |
CPU Socket Type | Lga 7529 cpu socket | Server Form Factor | 4U Server |
CPU Cooler Dimensions | 126.8mm*103mm*121.3mm | Cpu hole pitch | 81mm*69mm |
Fan Speed | PWM 1000-2200RP | Max Noise Level | 32.00dBA (MAX) |
Fan Airflow | 86.00CFM (MAX) | Fan Connector | 4pin PWM |
Bearing Type | 2 Ball Bearing | Cooler Materials | Aluminum fins+ Copper base + 6 heat pipes |
Cooling Type | Active | Process | Stamping, Soldering, CNC machining |
CPU Support | Intel xeon 6900P series (intel xeon 6960P processor and so on) |
▋Product Description

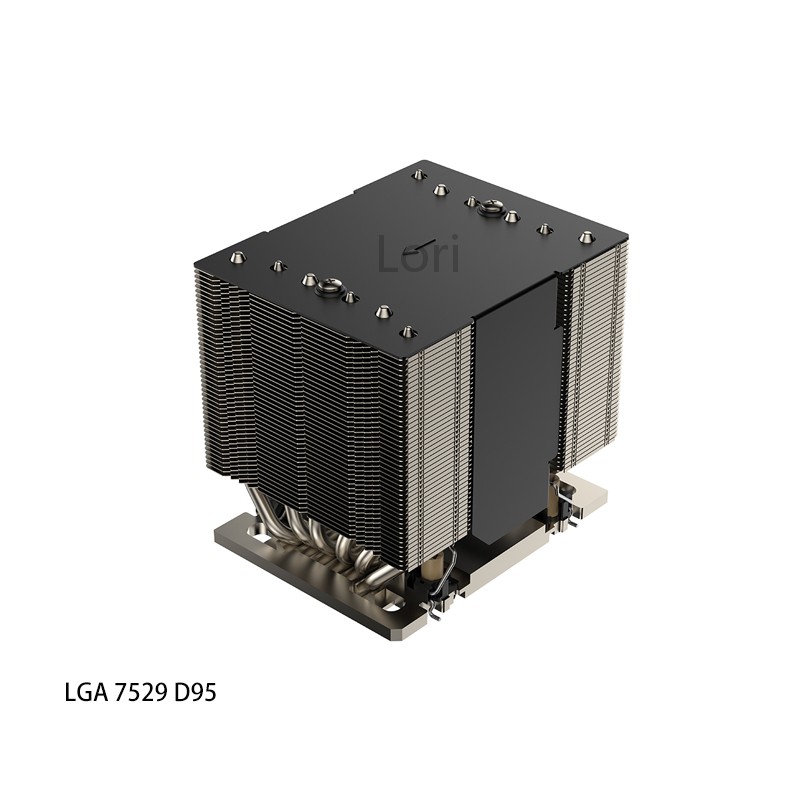

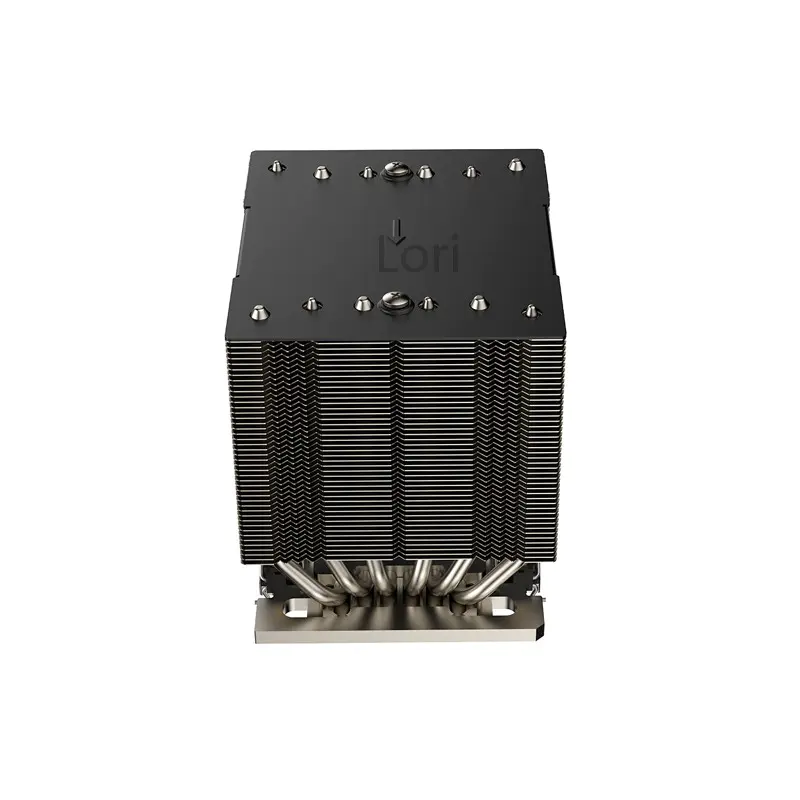

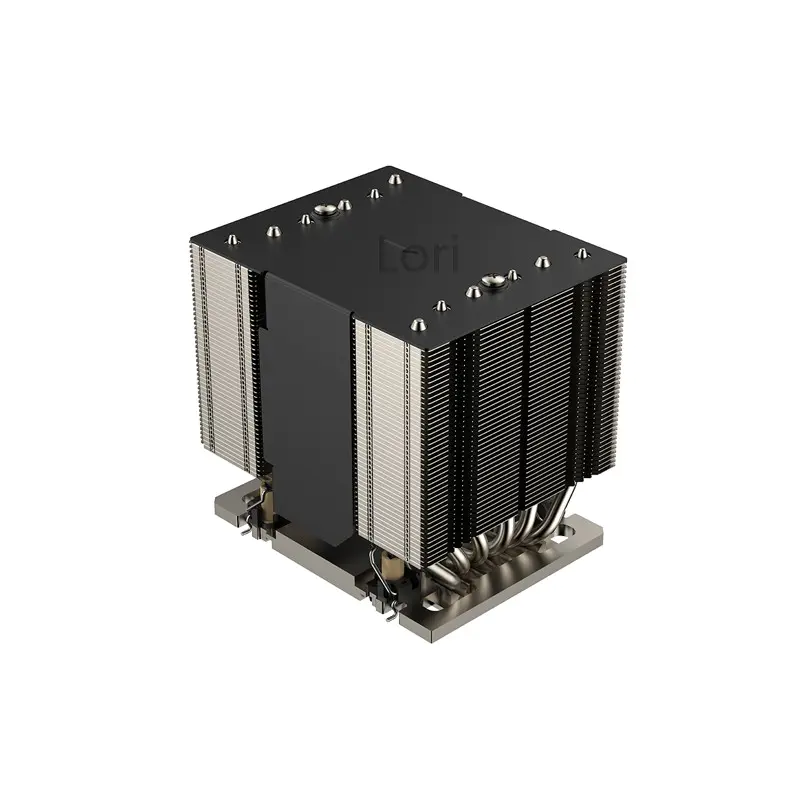

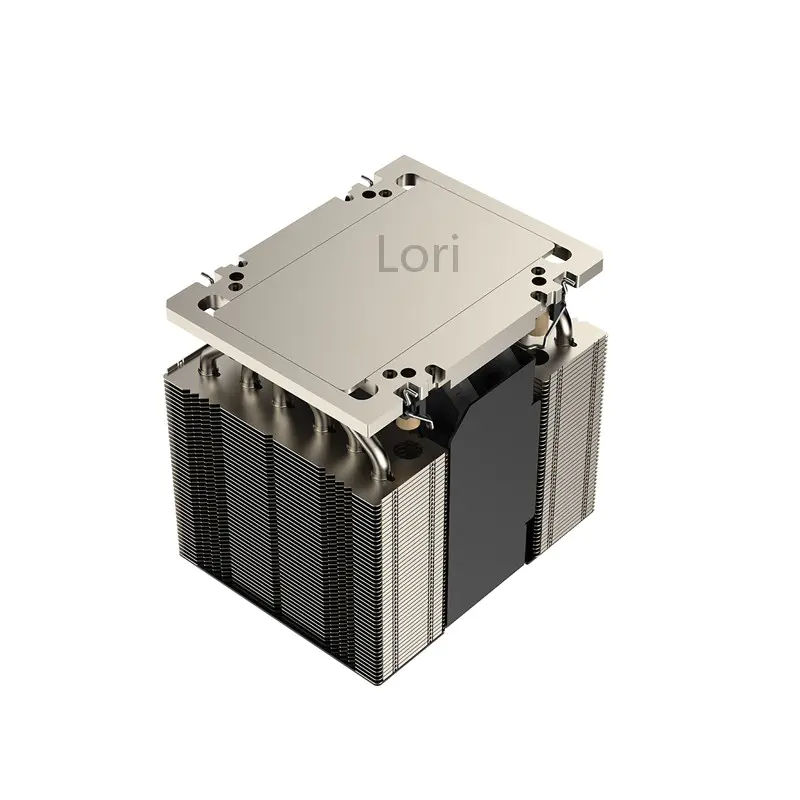

Lori 4U LGA 7529 CPU Heat Sink For Intel Xeon 6
This FCLGA7529 Square 4U Active Cpu Heat Sink is designed for Intel Xeon 6 Processor such as Intel xeon 6960P processor and so on, socket LGA 7529, aluminum fins with 6 heat pipes embedded and soldered on the copper base up to TDP 500W for 2U server solution. The Lori Intel LGA 7529 Socket 4U Server Active CPU Heat Sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
