Lori AMD EPYC 8004 Series 4U Server SP6 LGA4844 Socket Active CPU Heatsink

这里可以自定义设置

Lori AMD EPYC 8004 Series 4U Server SP6 LGA4844 Socket Active CPU Heatsink

B站不支持收货地址

B站不支持库存规格

Model No:: SP6-4U-D96

CPU Support:: AMD EPYC 8004 Series CPU

CPU Socket:: AMD SP6 Socket (LGA4844)

Application:: 4U Server

Payment:: T/T ,L/C /Paypal

Delivery time :: 3-15days after the deposit received

Departure port:: SHENZHEN

OEM/ODM:: Available

Certification:: RoHS and REACH compliant

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

Production Information

▋Product Specifications

Model No	SP6-4U-D96	TDP	400 W
CPU Socket type	AMD SP6 Socket (LGA4844)	Voltage Rating	12V
Server Form Factor	4U Server	Bearing Type	Double Ball Fan
CPU Cooler dimensions	132mm120mm152.8mm	Fan Interface	4pin PWM
Fan Speed	PWM 1000-2200RPM	Heatsink material	Aluminum fins+Copper base + 6 heat pipes
Fan Airflow	72.68CFM (MAX)	Cooling Type	Active
Max Noise Level	36.00dBA (MAX)	Process	Stamping, Soldering, CNC machining
Number of copper pipes	6	CPU	EPYC 8004 Series

▋Product Description

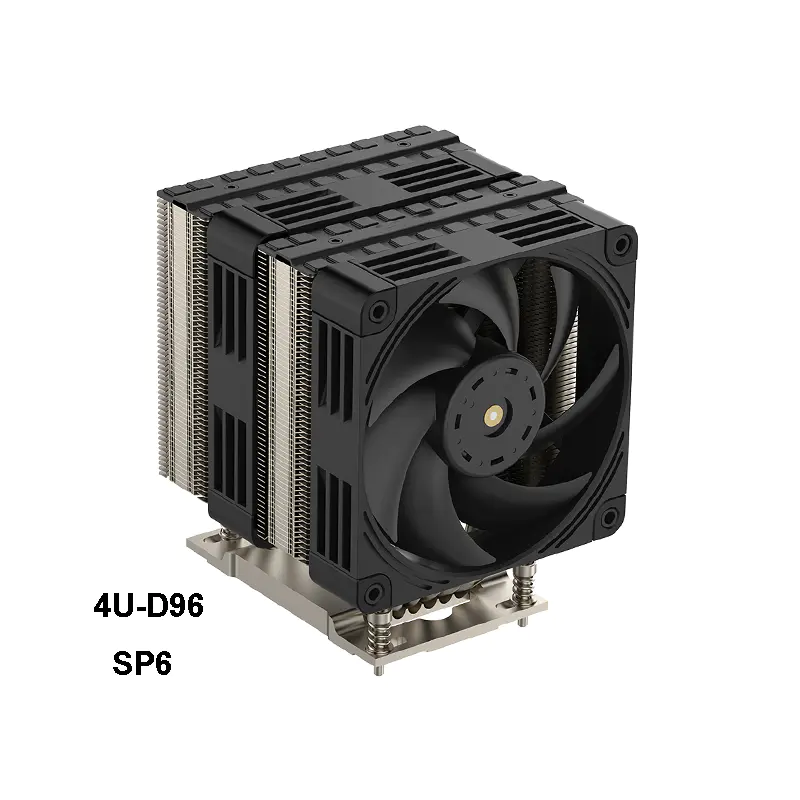

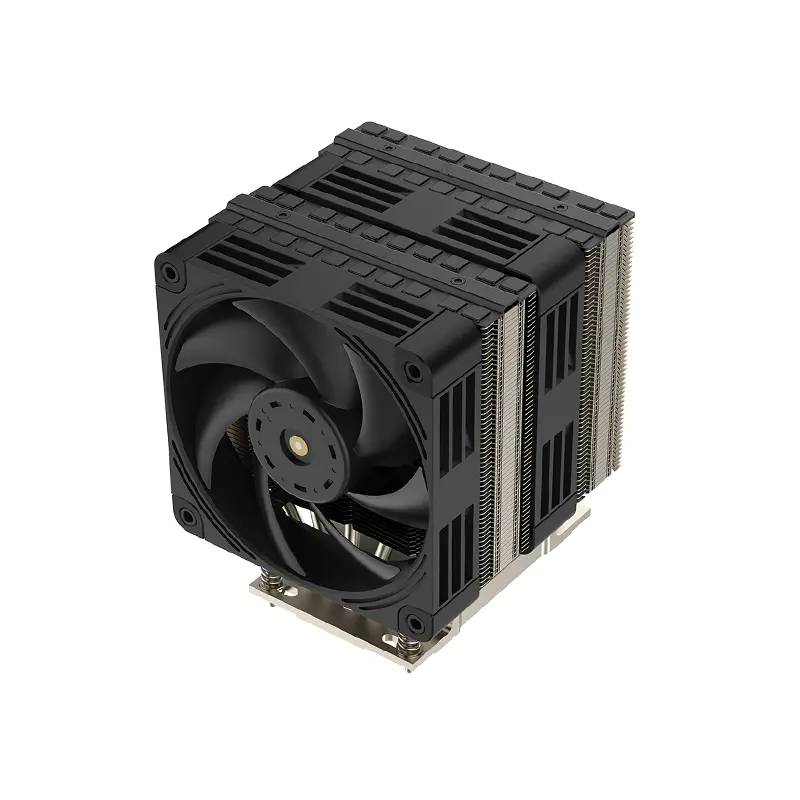

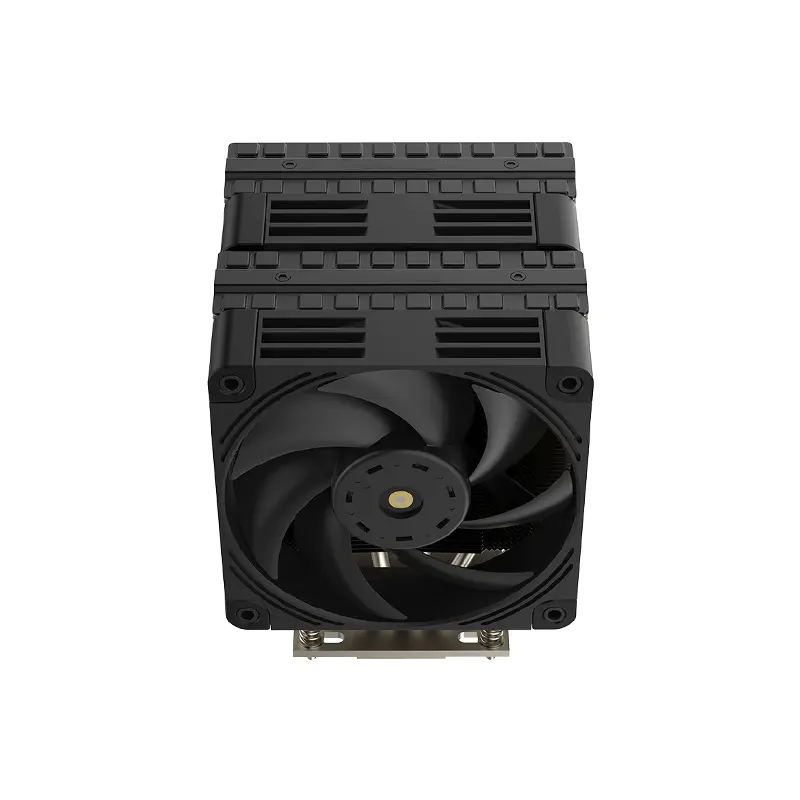

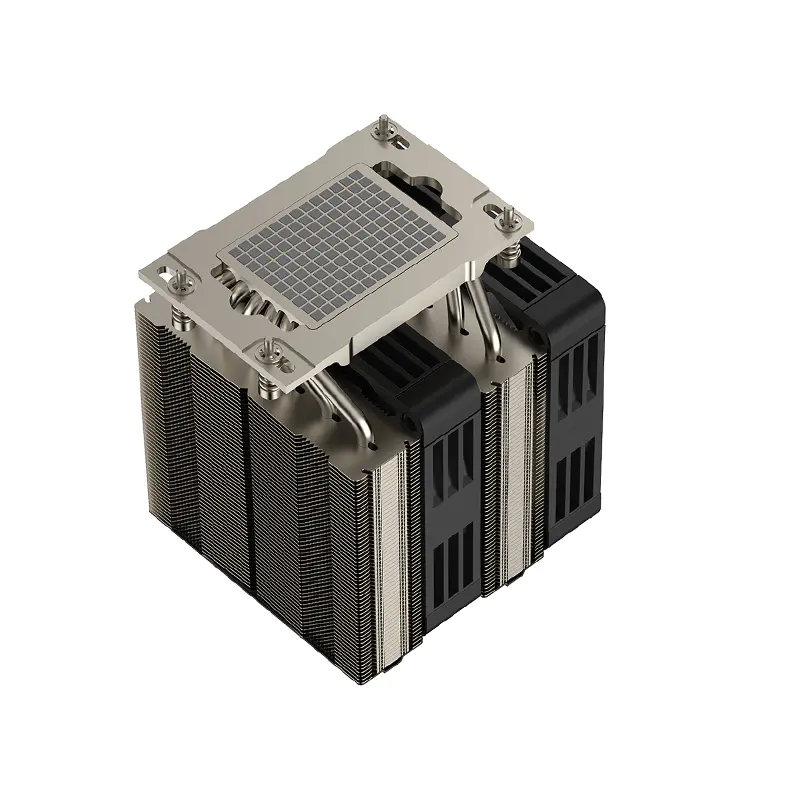

Lori AMD EPYC 8004 Series 4U Server SP6 LGA4844 Socket Active CPU Heatsink

Lori SP6-4U-D96 CPU heat sink is designed for AMD SP6 socket (LGA4844) of EPYC 8004 Series, aluminum fins with 6 heat pipes embedded and soldered on the copper base up to TDP 400 W for 4U server solution. The SP6-4U-D95 CPU heat sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
