Lori Dual CPU Cold Plate Liquid Cooling Closed Loop for LGA4677 Socket
B站不支持收货地址
B站不支持库存规格
Model No:
LGA4677-2U-L25
CPU Support:
Intel CPU
CPU Socket:
Intel LGA4677 Socket
Application:
2U Server
Payment:
T/T ,L/C /Paypal
Delivery time :
3-15days after the deposit received
Departure port:
SHENZHEN
OEM/ODM:
Available
Certification:
RoHS and REACH compliant
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Production Information
bg


Product Specifications

Model NoLGA4677-2U-L25Rated voltage12V
CPU Socket typeIntel LGA4677 SocketTube materialrubber
Server Form Factor2U ServerTube length
400mm
Water radiator dimensions

434mm*80mm*83mm

Application 2U server liquid cooling
Water pump dimensions

113mm*78mm*43mm

Liquid cooler materialWater Radiator + Water pump + Tube+ Fan
Water pump rotational speed2650 RPM
Cooling TypeAIO Liquid cooling
Fin thickness1.5 mmRoHSCompliance


Product Description

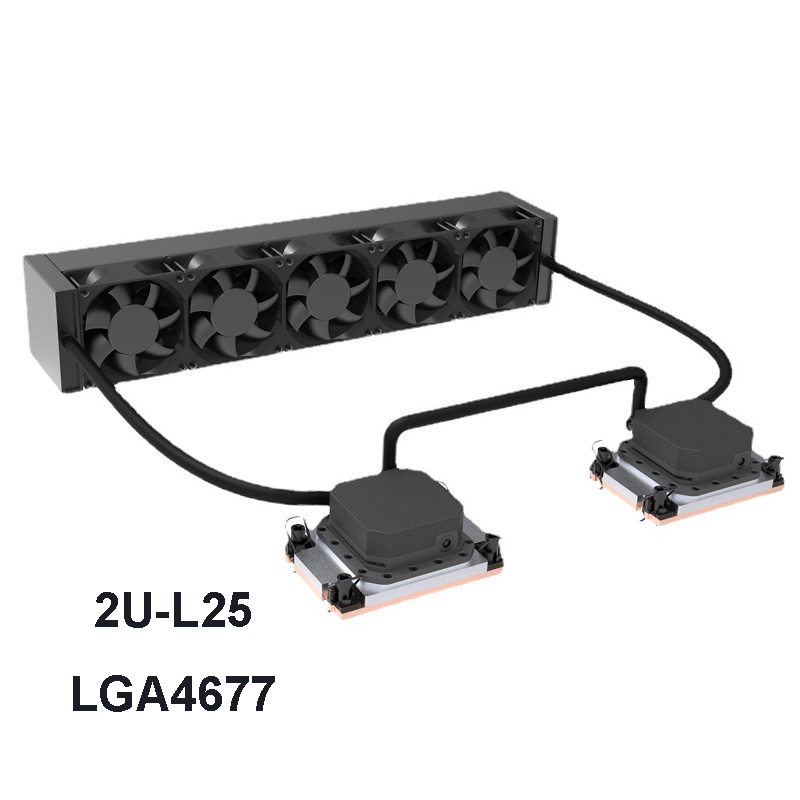

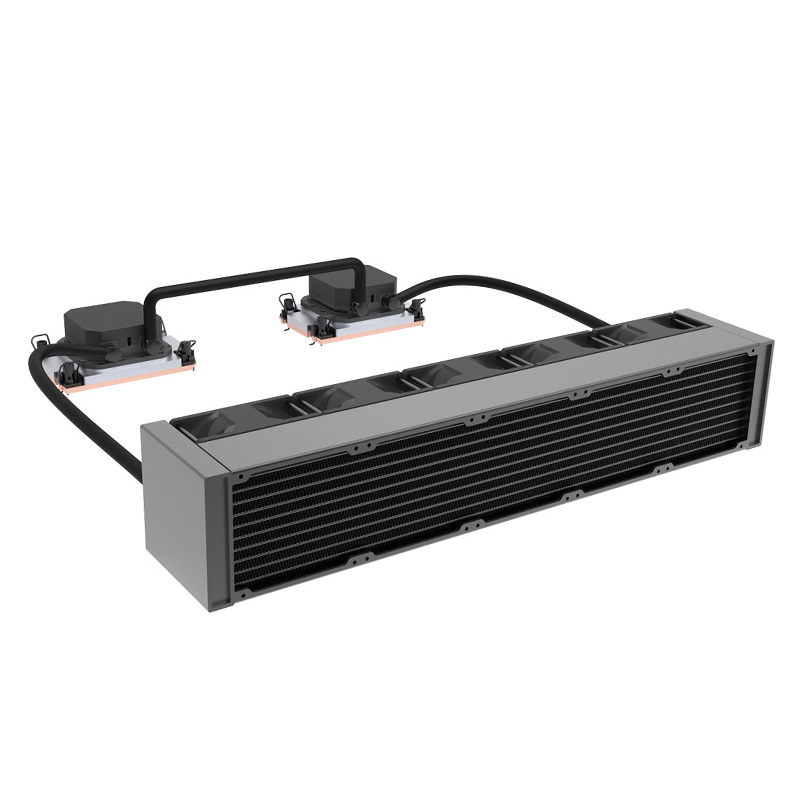

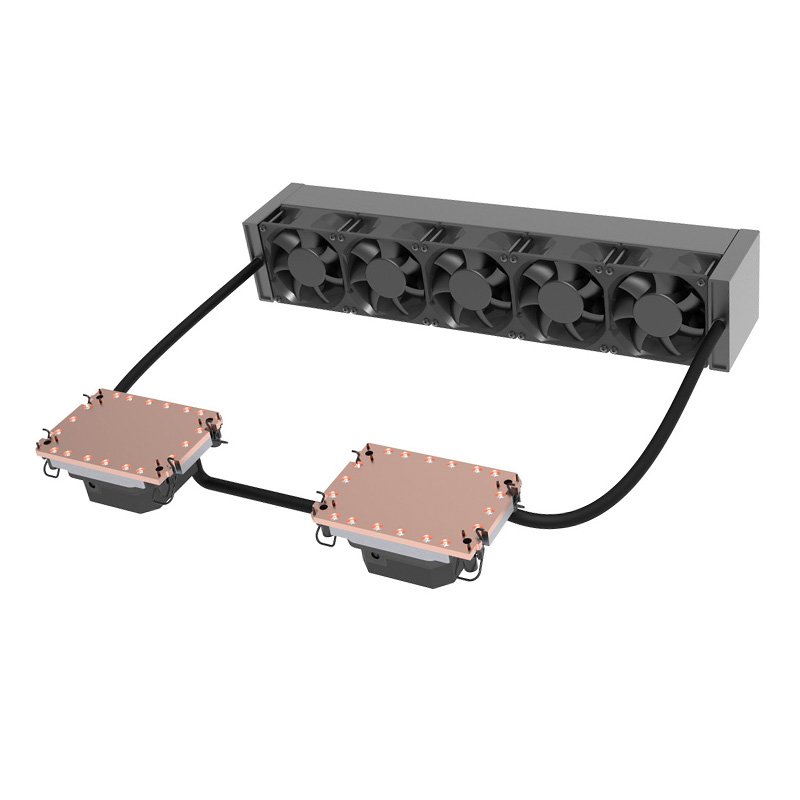

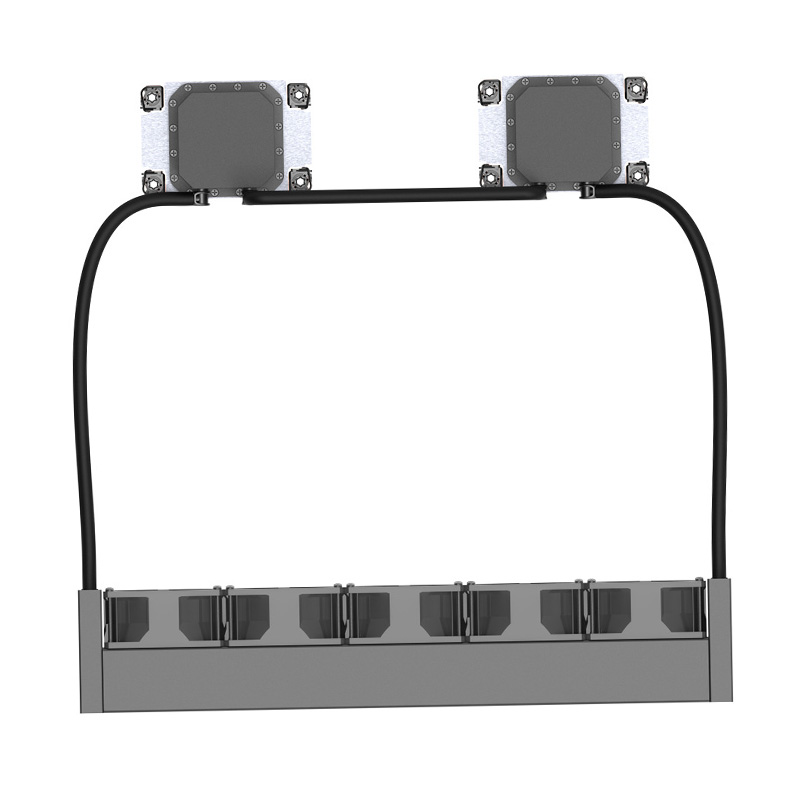

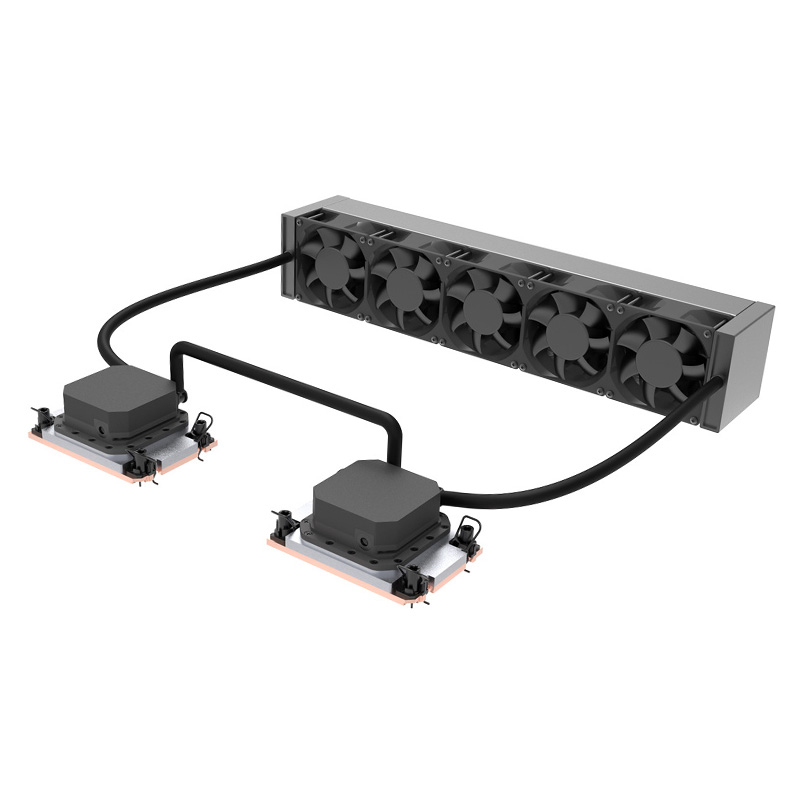

Lori Dual CPU Cold Plate Liquid Cooling Closed Loop for LGA4677 Socket


The LGA4677 liquid cooling closed loop consists of water drains, pumps, pipes, fans and is designed for the Intel LGA4677 socket and can be used in 2u server racks.Double pumps run and the pumps have copper bases, and the heat transfer ability is excellent. 2U water radiator design, large heat dissipation area, strong heat dissipation capacity. Five high air flow fans can quickly discharge CPU heat absorbed by water into the air outside the case.The 2u server LGA4677 liquid cooling system has been fully tested and validated by Lori to ensure the best quality and cooling performance.


Product Details
Fan spe


Part.1 Fan

Fan Speed:11000 RPM

Fan Size: 80mm*80mm*38mm

Noise: 65 dB(A)

Material: PBT

Fan Flow: 115 CFM

Voltage: DC 12V


Part.2 Water Radiator

Size: 434mm*80mm*83mm

Material: Aluminum


Part.3 Water Pump

Pump Speed: 2650 RPM

Pump Size: 113mm*78mm*43mm

Pump Noise: <30 dB(A)

Base Material: Copper

Pump Shaft: Ceramics

Voltage: DC 12V

CPU Socket: LGA4677
