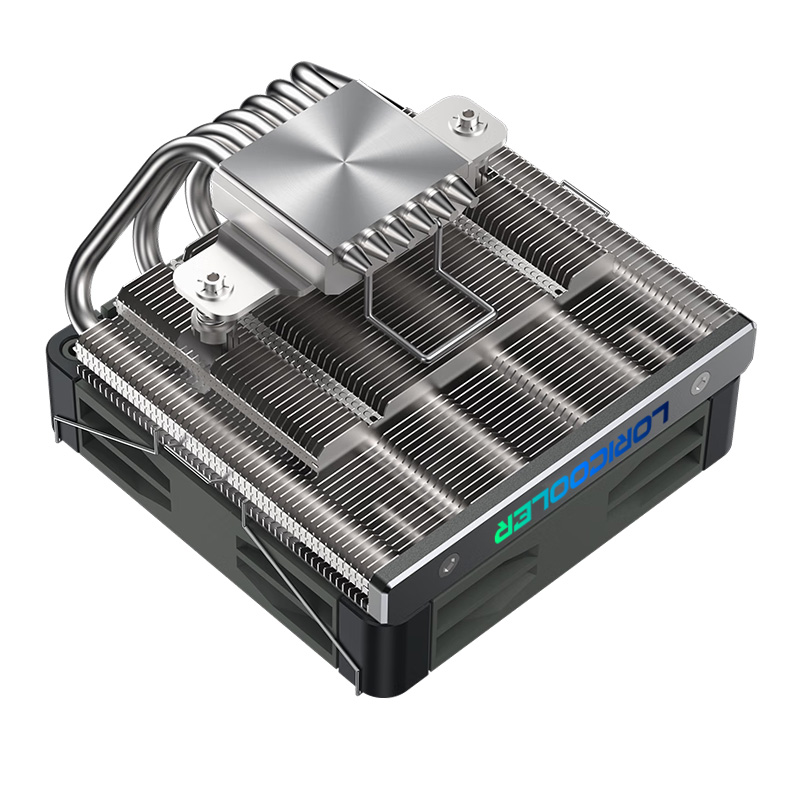

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 1

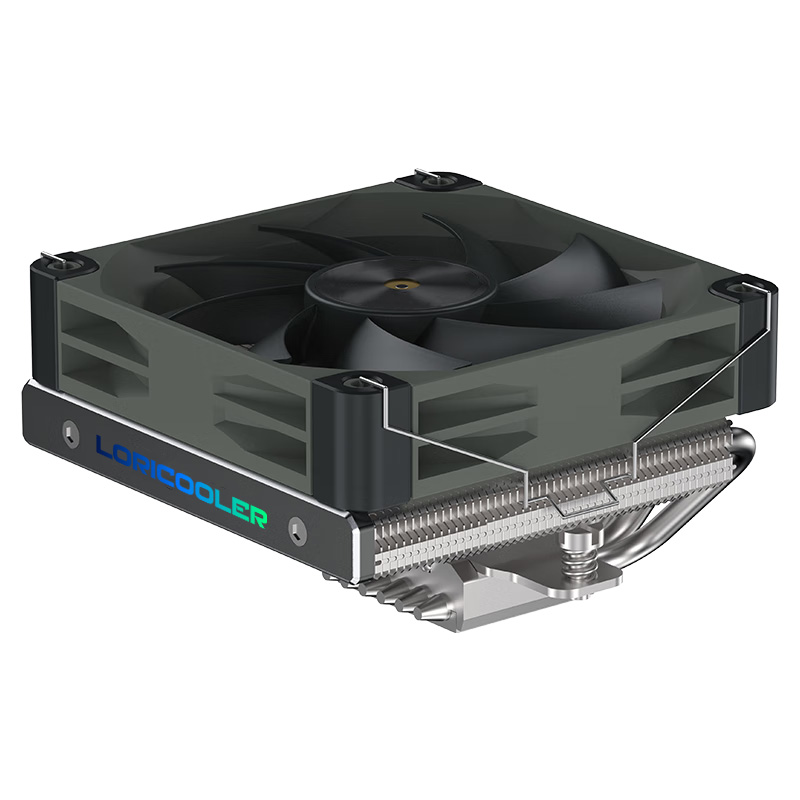

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 2

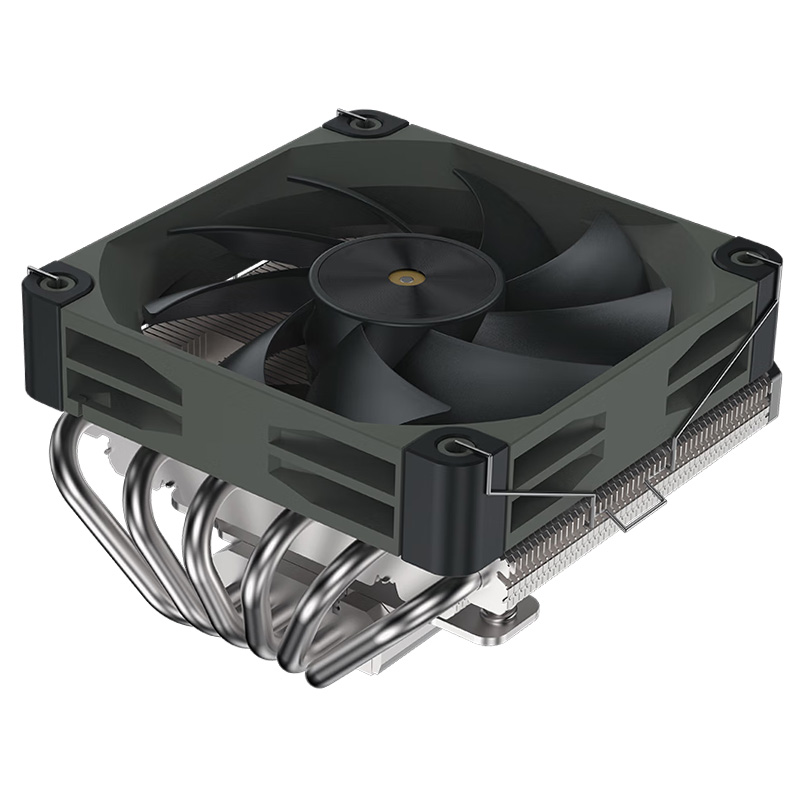

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 3

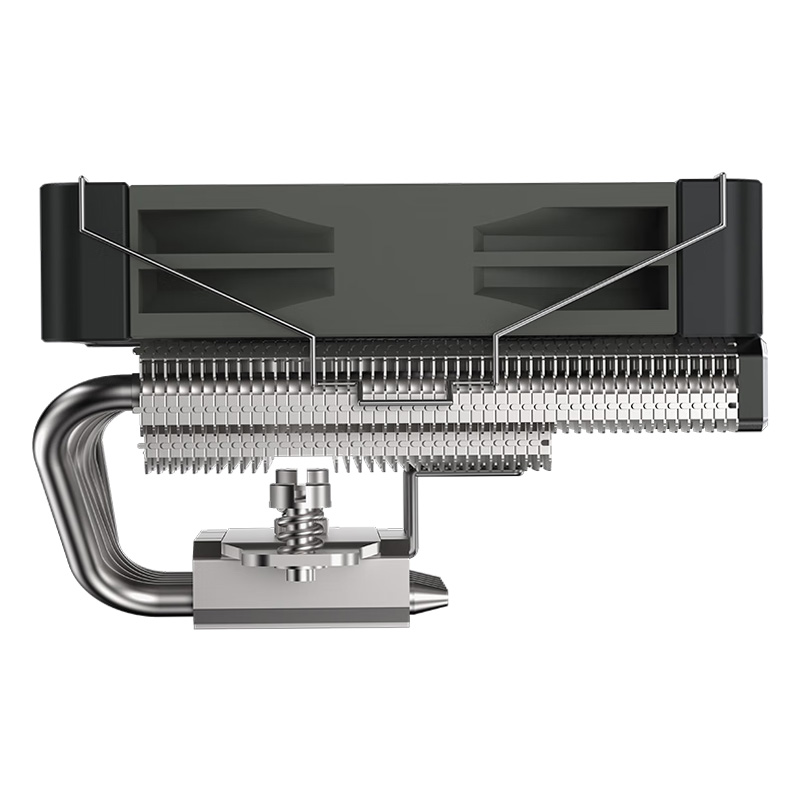

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 4

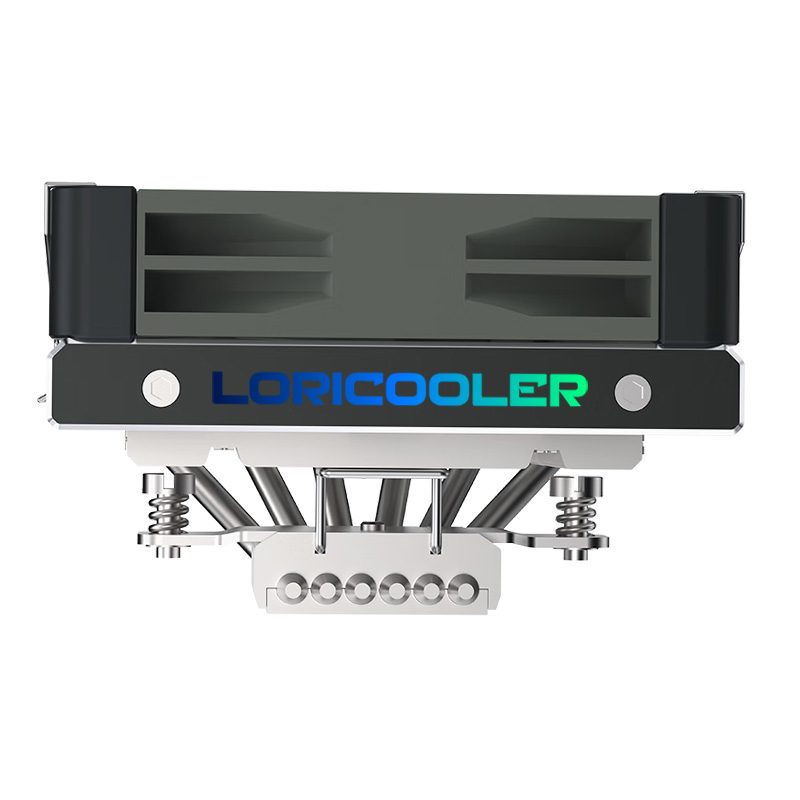

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 5

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case

Model No:

F67 PRO

CPU Support:

Intel and AMD CPU

CPU Socket:

Intel: LGA115X/1200/1700/1851 AMD: AM4/AM5 Socket

Application:

ITX Computer Case

Payment:

T/T ,L/C /Paypal

Delivery time :

3-15days after the deposit received

Departure port:

SHENZHEN

OEM/ODM:

Available

Certification:

RoHS and REACH compliant

Inquiry

Write a Review

▋Product Specification

Model No	F67 PRO	Fan Interface	4 Pin PWM
CPU Cooler Dimesion	12012067mm	CPU Socket	Intel: LGA115X/1200/1700/1851 AMD: AM4/AM5 Socket
Noise Level	≤25.8dB(A)	Fan Pressure	1.43 mmH20
Bearing Type	FDB Bearing	Fan dimensions	120 x 120 x 15 mm
Fan Speed	1850RPM±10%	Fan Airflow	65 CFM
Heat Pipe Specification	6mm×6pcs	Cooling Type	Active

▋Product Description

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case

The F67 PRO air cpu cooler supports multiple platforms: Intel LGA115X/1200/1700/1851 socket and AMD AM4/Am5 socket. The downward pressure cpu cooler is a heat dissipation solution designed for ITX computer case, designed to effectively reduce the temperature of the computer hardware during operation, ensure the stable operation of the computer, while extending the service life. The active cpu cooler is aimed at mid to high-end ITX users, with reflow weld heat sink fins, a copper base and six high conduction heat pipes, giving this cpu cooler an exceptional experience. The best 6 heat pipe cpu cooler has been fully tested and validated by Lori to ensure the best quality and cooling performance.

Product Details

1. Full Reflow Process

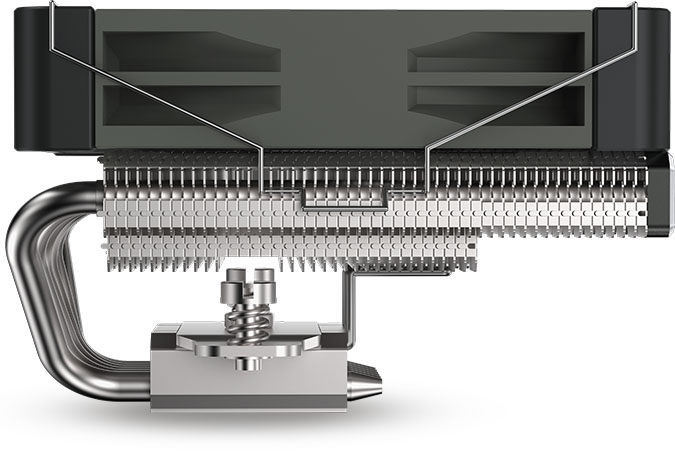

This air-cooled cooler uses 0.4mm aluminum electroplate fins, and 6 high conductivity heatpipes are fixed to the fins through the reflow process to enhance the effective contact area. The fully nickel-plated reflow soldered copper base, under the action of pressure fasteners, fits the CPU more closely and conducts heat more efficiently.

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 7

2. Easy Installation and Compatibility

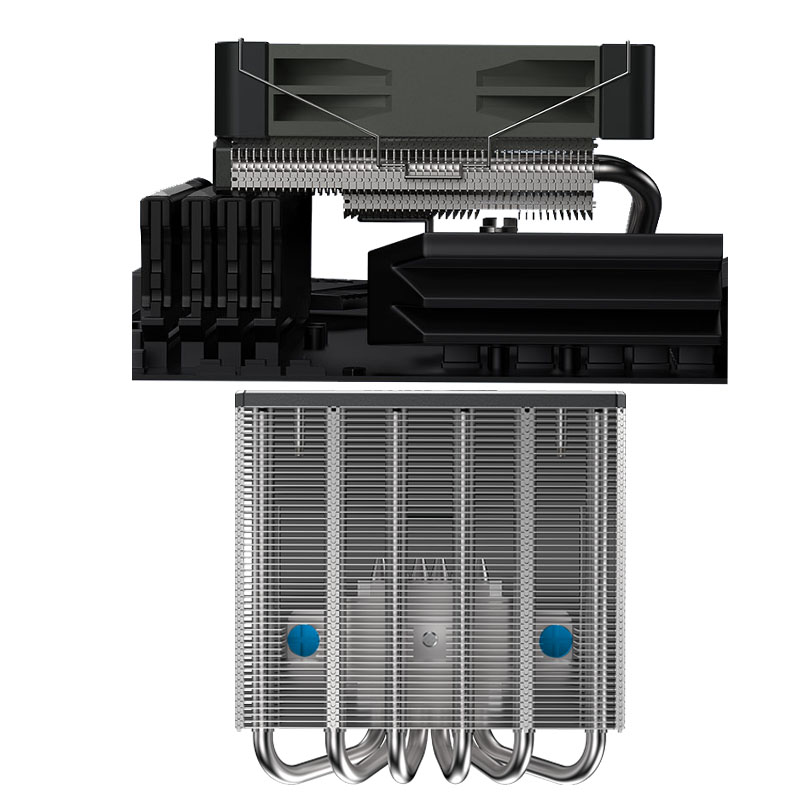

Through the crossbar pressure plate fastener, one-piece pressure plate pressure is more uniform, better fit the CPU, only need to fasten the screws on the front, easy to install. No fear of interference from surrounding MOS tubes. Equipped with multi-platform fasteners.

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 8

3. High-performance fan and solid architecture

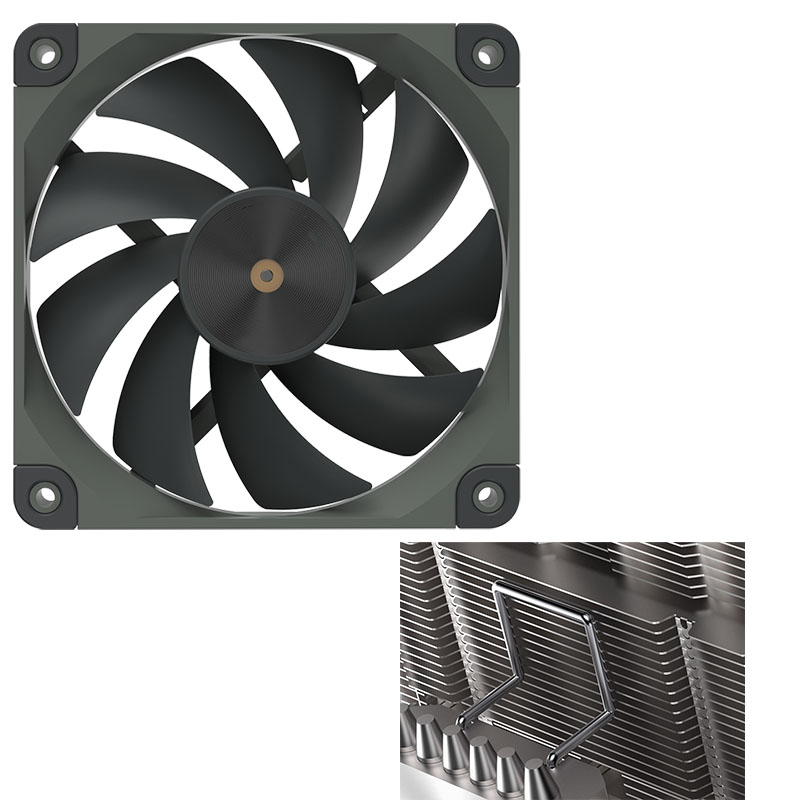

This PWM temperature-controlled fan is specially tuned for airflow and air pressure over-parameters, with fully wrapped shock-absorbing silicone pads and FDB bearings to achieve higher performance breakthroughs at low noise levels. Stainless steel support brackets are placed under the cooling fins to prevent the fins from deformation, making the overall architecture more stable.

Lori F67 PRO Downward Pressure CPU Cooler with 6 Heat Pipes for ITX Case 9
