CPU & GPU Direct to Chip Cold Plate

What Is A Direct Chip Liquid Cold Plate?

A direct chip liquid cold plate is the core component of a liquid cooling system.Throughout the liquid cooling system, the liquid cold plate is in direct contact with the heat source (CPU, GPU, and other hardware) and transfers the heat from the heat source to the outside air or cooling unit through water or other coolants.Liquid cold plates are usually made of metal (mainly copper or aluminum) and will have micro-channels inside the cold plate to improve the heat dissipation ability of the cold plate. Lori liquid cold plates direct-to-chip cooling control the heat of high-power electronic components in the liquid cooling loops of high-powered AI servers, CPUs, GPUs, and quantum computing hardware, to ensure the stability of the equipment's operation and energy-efficiency.

View more
Advantages of Liquid Cold Plates
The cooling plate is in direct contact with the heat source, and heat transfer with the liquid that has high thermal conductivity and and capacity.
The cold plate closely fits the surface of the high temperature parts, and can flexibly form liquid cooling circuits with the pipeline, which can reasonably utilize the smaller space.
The cold plate can be designed with different liquid loop and sizes according to different application requirements to meet the cooling needs of different equipment.
Higher heat dissipation efficiency can reduce the energy consumption of the equipment, thus reducing the impact on the environment.

Types of Lori CPU & GPU Cold PLates

Lori is a premier global Liquid Cooling plate manufacturer offering an extensive range of sustainable liquid cooling solutions, including both Direct liquid Cooling and Immersion Cooling technologies. Lori can provide you custom CPU and GPU cold plate designs and manufactures.

CPU Cold Plate

Lori CPU Cold Plate is suitable for server racks with Intel, AMD, and other various CPU sockets.Inside the cold plate are micro-channels formed by fins of different thicknesses and spacing to increase the flow rate of coolant and improve heat dissipation efficiency.The cold plate is capable of connecting to quick disconnects (QDs) and tubes for plug-and-play, easy installation.Upon request, Lori CPU liquid cold plates can also be customized with dual channel cold plates.

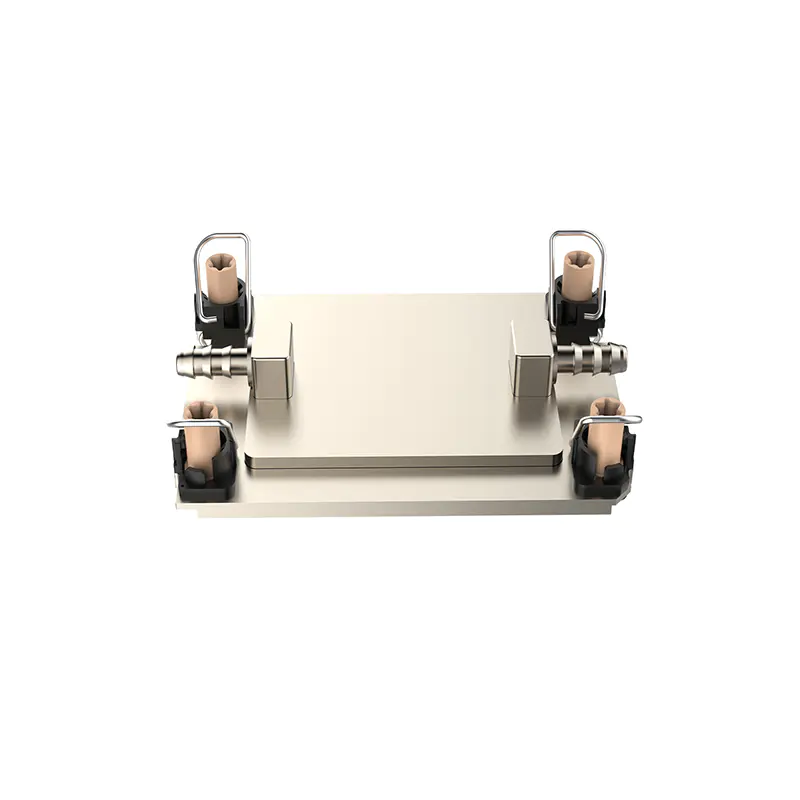

Intel CPU Liquid Cold Plate

CPU Socket: LGA4677 Socket
Dimension: 118*78*19.1 mm
Weight: 420g
Fin Thickness: 0.5mm
Fin Pitch: 0.15mm
TDP: 400W
Material: Copper base + Copper fin

Coolant: Water,Propylene Glycol , Ethylene Glycol, etc.

AMD CPU Liquid Cold Plate

CPU Socket:AMD SP5 Socket (LGA6096 Socket)

Dimension: 118*78.9*25 mm

Fin Thickness: 0.5mm
Fin Pitch: 0.15mm
TDP: 500W
Material: Copper base + Copper fin
Coolant: Water,Propylene Glycol , Ethylene Glycol, etc.
Application: AMD EPYC 9004 Series Server

GPU Water Cooling Block

Lori GPU water blocks are designed for NVIDIA high-powered graphics card GPUs and are basically composed of a copper base and an aluminum backplate.The thin and lightweight copper base also has micro-channels inside to speed up the efficiency of heat transfer.The lightweight backplate provides all-around protection for the GPU, and Lori GPU cooling plates can be categorized into single-slot, dual-slot, and triple-slot liquid cooling plates depending on the configuration of the graphics card.

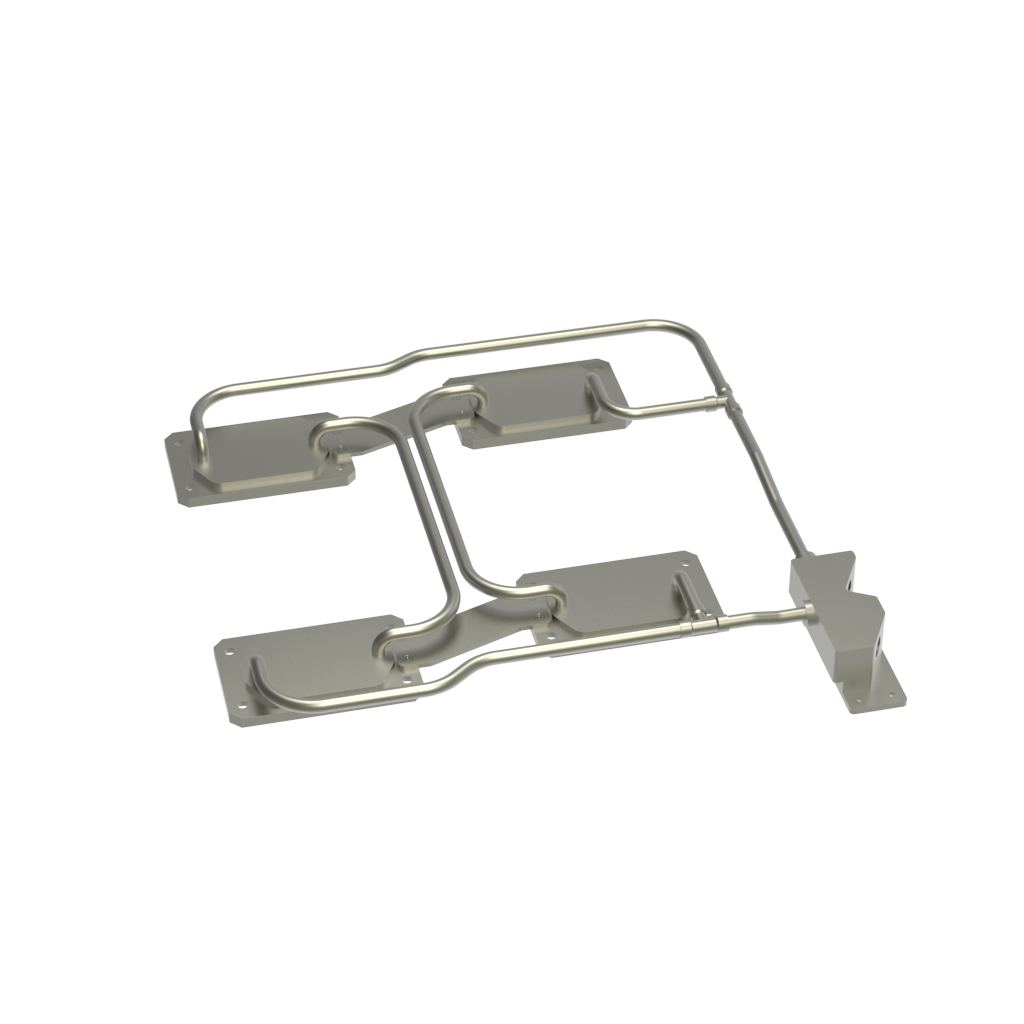

CPU & GPU Direct-to-chip Liquid Cooling Loop

Lori's CPU and GPU direct-to-chip cooling loops are a liquid cooling system for servers and workstations that consists of two or more cold plates connected through customized piping using a vacuum brazing process. Lori's liquid cooling circuits are tested for airtightness by professional testing equipment upon completion.
