Intel Xeon Processor LGA9324 Socket 2U EVAC Passive CPU Cooler

这里可以自定义设置

Intel Xeon Processor LGA9324 Socket 2U EVAC Passive CPU Cooler

B站不支持收货地址

B站不支持库存规格

Model No:: LGA9324-2U-EV85 (EVAC)

CPU Support:: Intel Xeon Diamond Rapids Processor

CPU Socket:: Intel LGA 9423 Socket

Application:: 2U Server

Payment:: T/T ,L/C /Paypal

Delivery time :: 3-15days after the deposit received

Departure port:: SHENZHEN

OEM/ODM:: Available

Certification:: RoHS and REACH compliant

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

Production Information

▋Product Specifications

Model No	LGA9324-2U-EV85 (EVAC)	CPU TDP	700W
CPU Socket type	Intel LGA 9423 Socket	Voltage Rating	12V
Server Form Factor	2U Server	Heatsink material	Aluminium stacked fins+copper base + heat pipes
CPU Cooler dimensions	354.2mm228.3mm81mm	Cooling Type	Passive
Fin Thickness	customizable	Process	Stamping, Soldering, CNC machining
Fin pitch	customizable	CPU Support	Intel Xeon Diamond Rapids Processor

▋Product Description

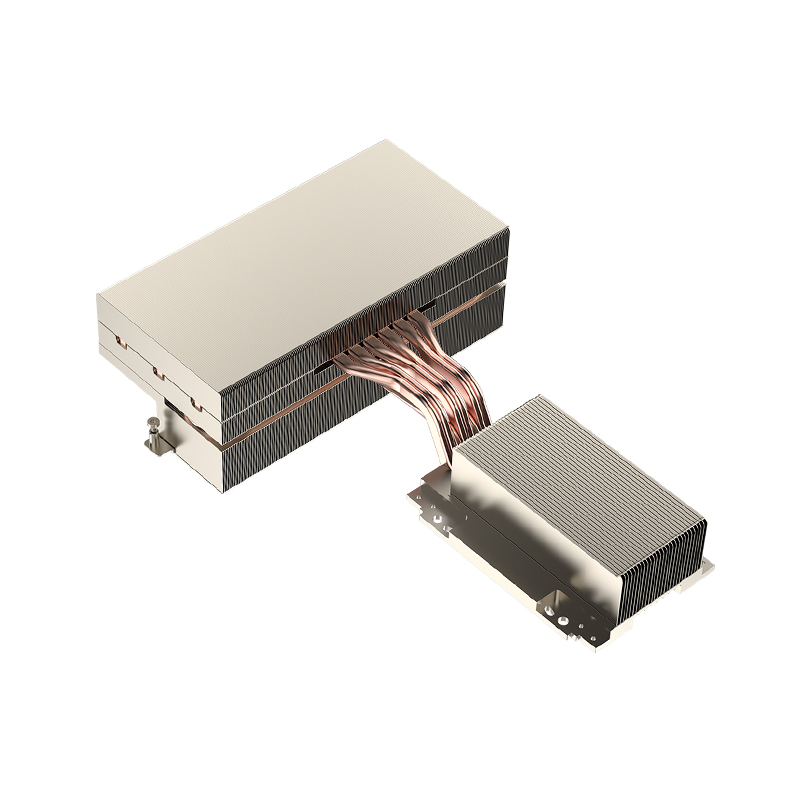

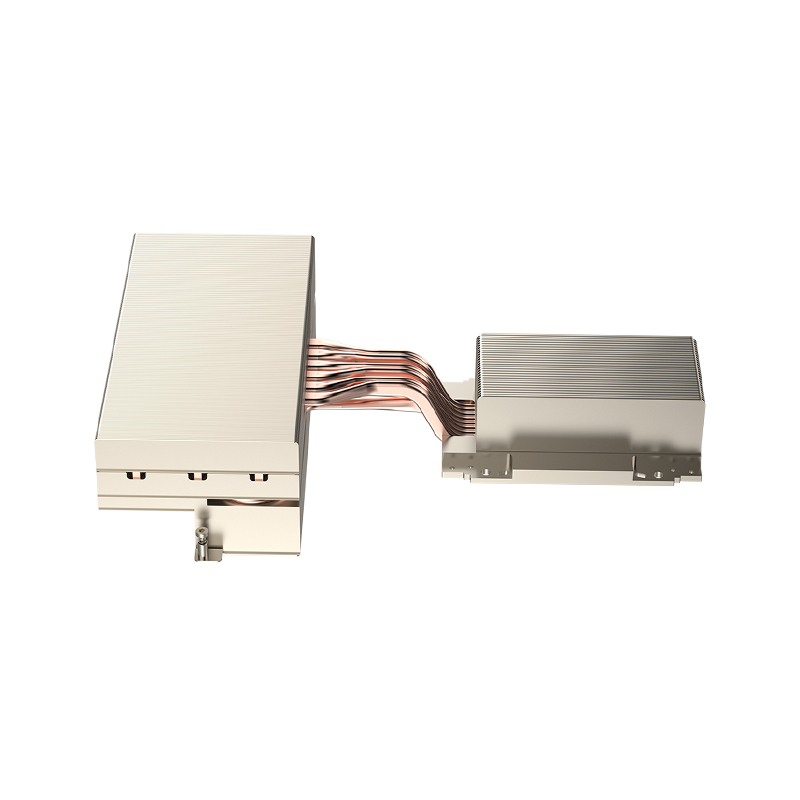

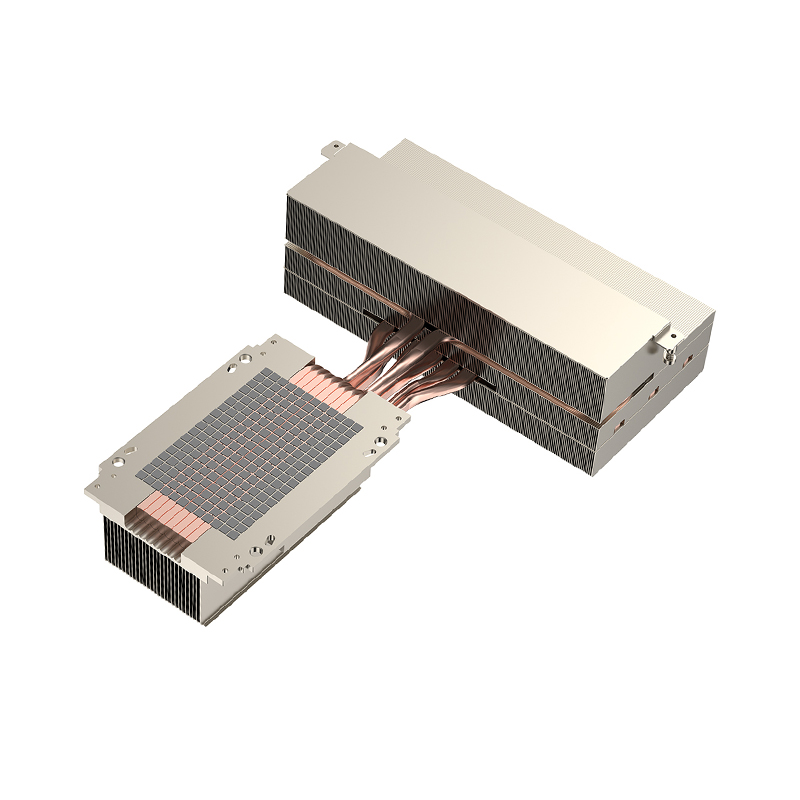

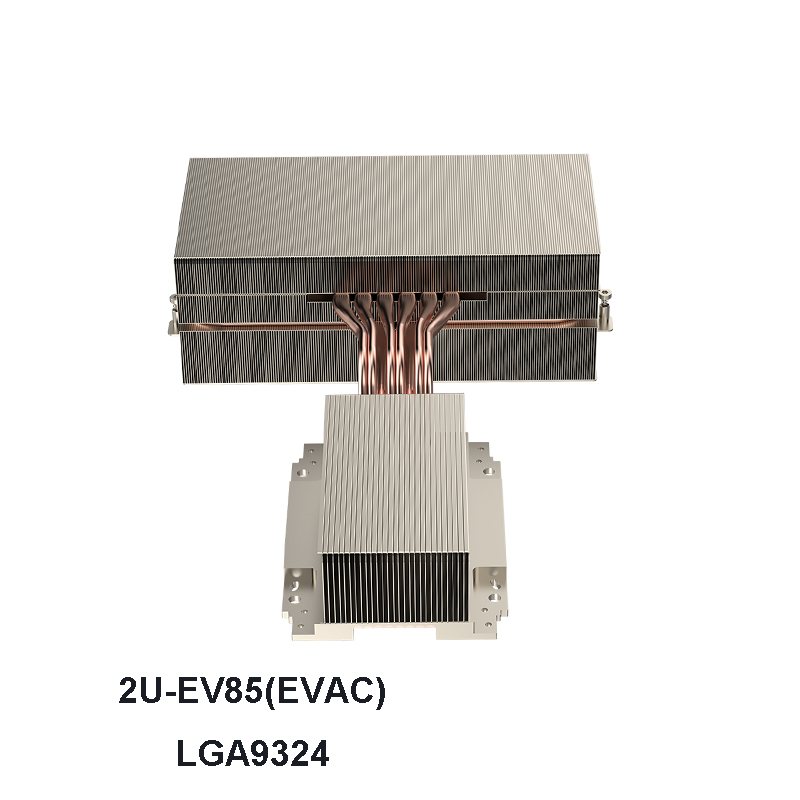

Intel Xeon Processor LGA9324 Socket 2U EVAC Passive CPU Cooler

The extended air volume air cooling cpu cooler (EVAC cpu cooler) is designed for Intel xeon Diamond Rapids processor 2u server rack, socket LGA 9423. The LGA 9423 socket heat pipe cpu cooler is aluminum fins soldered on the copper base with heat pipes for 1U server solution. Lori heat pipe EVAC cpu cooler larger area heat sink fin design, fin arrangement and heat pipes make air flow faster, can effectively take away the heat of the CPU, which supports 700 Watts CPU Power Heat Dissipation. The passive cpu heat sink has been fully tested and validated by Lori to ensure the best quality and cooling performance.
