▋Product Specifications
| Model No | SP5-4U-K98 | TDP | 400 W |
| CPU Socket type | AMD SP5 Socket | Voltage Rating | 12V |
| Server Form Factor | 4U Server | Bearing Type | 2 ball bearing |
| CPU Cooler dimensions | 130mm*100mm*154mm | Fan Interface | 4pin PWM |
| Fan Speed | PWM 1000-2200RPM | Heatsink material | Aluminum fins+Copper base +6 heat pipes |
| Fan Airflow | 72.68CFM (MAX) | Cooling Type | Active |
| Max Noise Level | 36.00dBA (MAX) | Process | Stamping, Soldering, CNC machining |
| CPU Series | EPYC 9004 series ( AMD EPYC 9654/9754/9554 cpu or more ） | Number of copper pipes | 6 |
▋Product Description

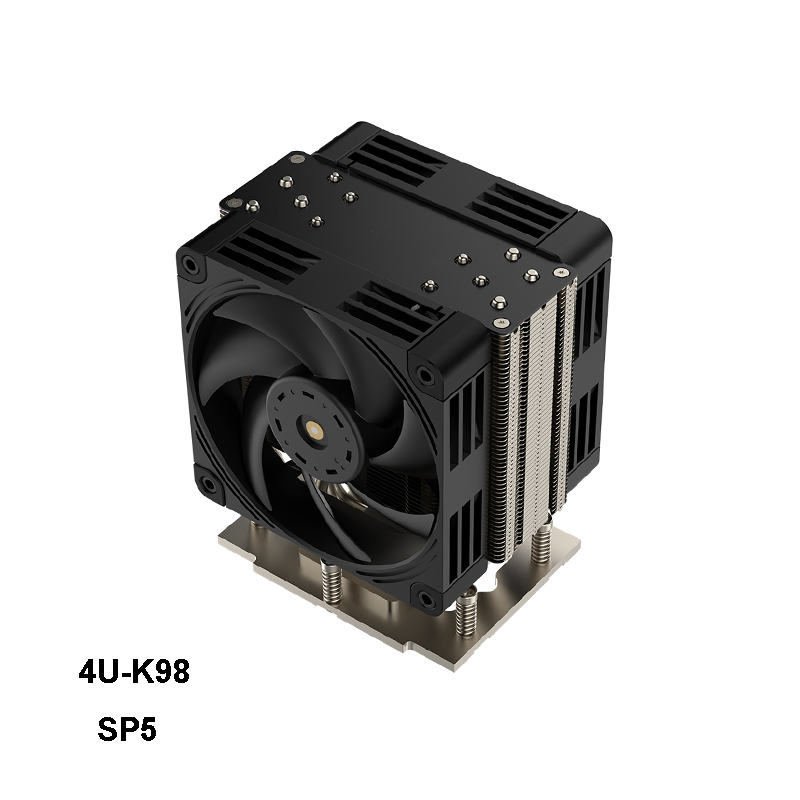

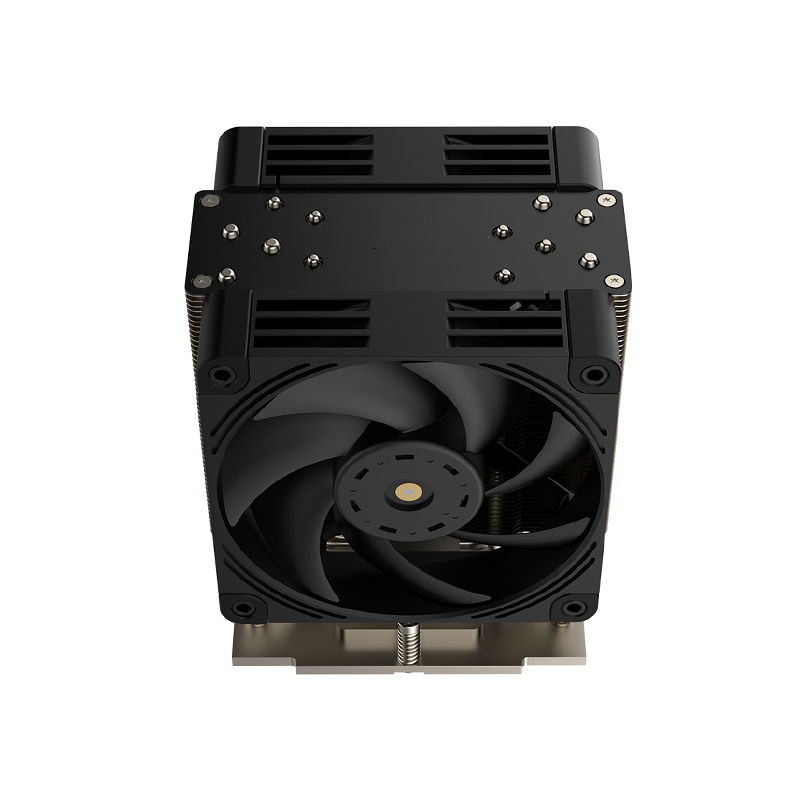

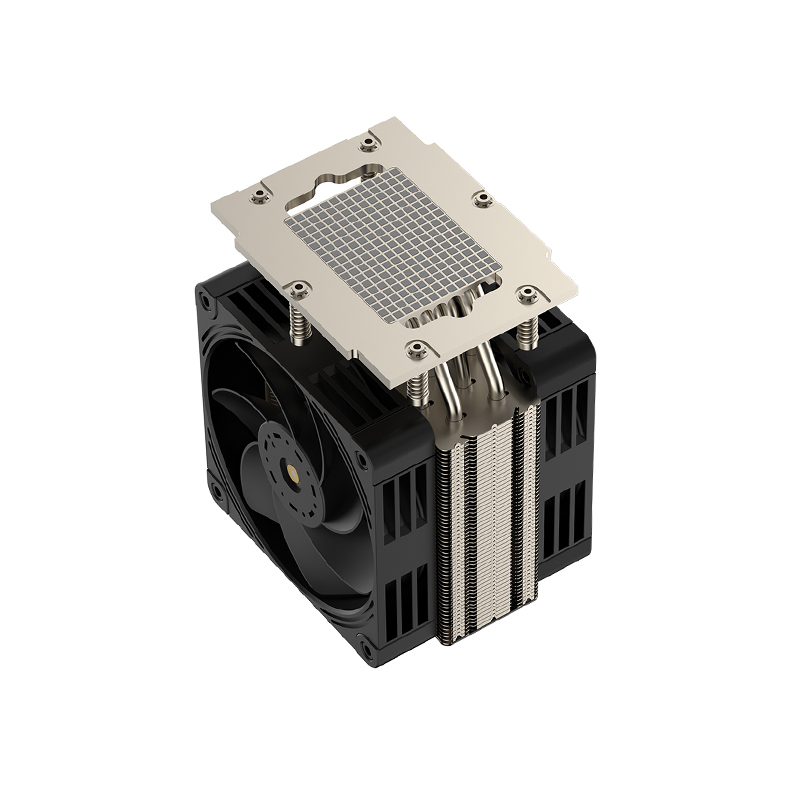

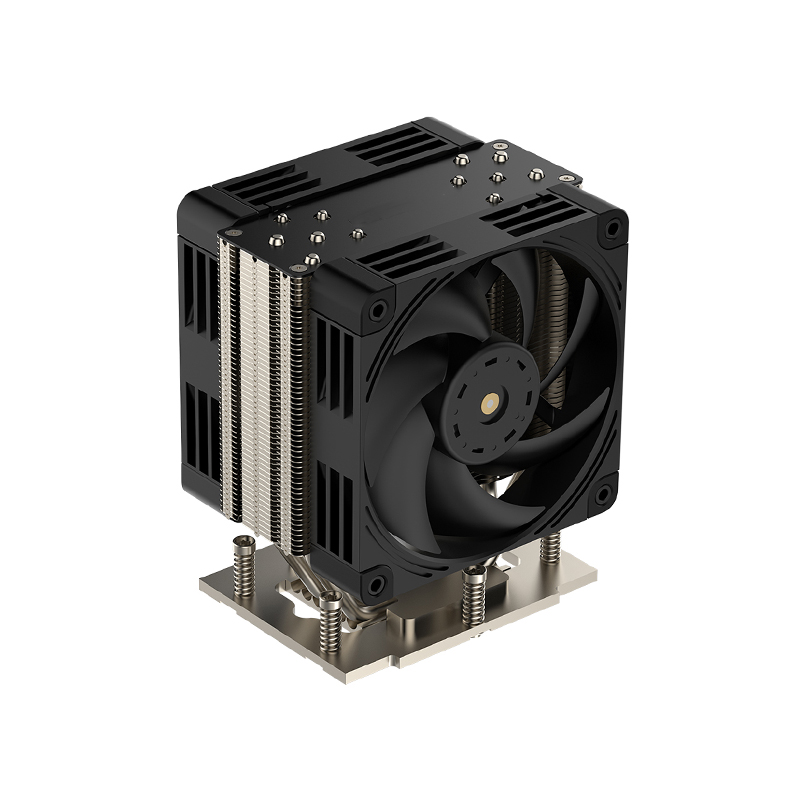

AMD SP5 Socket 4U Server CPU Cooler for EPYC 9004 Series
Lori AMD CPU cooler is a SP5 socket active cooler designed for EPYC 9004 series ( AMD EPYC 9654/9754/9554 cpu or more ）, and is made of aluminum fins with 6 heat pipes embedded and soldered on the copper base up to TDP 400W for 4U server solution.The AMD epyc genoa 4u server CPU cooler has been fully tested and validated by Lori to ensure the best quality and cooling performance.
